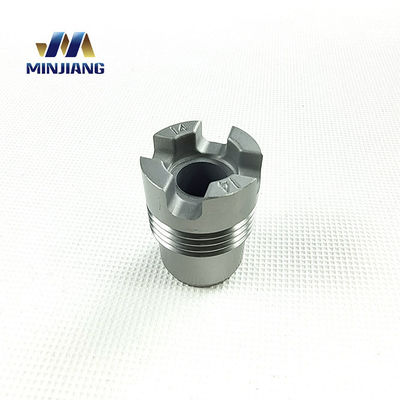

OEM Tungsten Carbide Sandblasting Nozzle For Petroleum Machinery





Tungsten Carbide Nozzles have become increasingly popular in various industrial settings as they offer exceptional resilience and incredible versatility. This material is composed of tungsten and carbon, a combination that is far more resistant to corrosion, wear, and erosion than other materials. With these nozzles, businesses are able to direct a variety of substances like gas, water, or powder with great accuracy. They are also uniquely capable of withstanding tough industrial conditions and require minimal maintenance, making them a cost-effective and reliable investment. Additionally, these nozzles are used in a variety of applications, such as spray systems, heat exchangers, and chemical reactors, making them a versatile choice for any business. With their impressive properties, tungsten carbide nozzles can provide long-lasting and reliable performance in any industrial setting.



General Applications



Carbide nozzles are used in many different areas of the oil and gas industry. They are used to inject small amounts of chemicals into oil wells, to inject water into oil and gas wells, to precisely direct drill bits during directional drilling, and to mix and deliver drilling mud and other fluids. Carbide nozzles are also used in hydraulic fracturing operations to create fractures in rock formations in order to increase the amount of oil or gas that can be extracted. In addition, carbide nozzles are used in downhole drills and other equipment, such as pumps and valves, to control the flow of oil, gas, and other fluids.





Grade	ISO Grade	Chemical Composition		Physical Properties				Applications
		WC%	CO%	Density g/cm3(±0.1)	Hardness HRA(±0.5)	TRS Mpa(min)	Grain Size(μ m)
YG6	K20	94	6	14.85-15.00	90.5-92	1800	1.2-1.6	Carbide burr.
YG6X	K15	94	6	14.80-15.00	91.7-93	1600	＜1.0	High wear resistance and higher, strength. Machining of chilled alloy cast irons and refractory alloy steel or finishing of common cast irons.
YG8	K30	92	8	14.62-14.82	89.5-91	1900	1.2-1.6	Wire drawing die and non-standard structure and mechanical component and valve ball.
YG9	K40	91	9	14.40-14.60	89-90	1850	1.2-1.6	Flow sleeves, bushings, rings.
YG9C	K40	91	9	14.50-14.90	87.5-89	1815	1.2-1.6	Nozzles, for the petroleum.
YG11	K40	89	11	14.35	89	3200	1.6-2.0	Nozzle, buttons, hemisphere, drilling teeth for the petroleum industry.
YG11C	-	89	11	14.20-14.40	87.5-89	2200	1.6-2.4	Inserts for mining and high-pressure nozzles in the petroleum, chemical, and mechanic industries.
YG13	-	87	13	14.10-14.30	87.5-89	2500	1.6-2.0	Sleeves and bushings.
YG13C	-	87	13	14.05-14.25	85.8-87.3	2550	2.4-4.0	Alloy teeth and brazing bits.



Product Features



Corrosion Resistance: Our carbide nozzles are resistant to corrosion and can withstand harsh environmental conditions.



Low Maintenance: Our carbide nozzles require minimal maintenance, allowing for improved operational efficiency.



Reliability: Our carbide nozzles are highly reliable and produce consistent results, promoting customer satisfaction.



Reduced Heat: Our carbide nozzles are designed to generate minimal heat, allowing for improved safety in applications.



Types of Nozzles



• Cross slot nozzle
• External hexagon nozzle
• Internal hexagon nozzle
• Cinquefoil nozzle
• Triangular slot nozzle
• Fixed nozzle
• Micro Nozzle
• Roller bit nozzle
• Non-standard nozzle



Our Advantages



• Factory: MINJIANG is a high-tech private enterprise.
• Specialization: MINJIANG is specialized in tungsten carbide parts for the oil and gas industry for over 30 years.
• Product: The factory is equipped with professional equipment, and has formed a complete production line.
• Worker: Now the company has more than 160 employees, over an area of 10000 square meters.
• Service: We have the ability to supply high-quality products with high efficiency as well as the development ability of the new products, so we can meet various customers’ requirements.



FAQ



1. Q: Do you provide free samples?

A: We can provide free samples, but do not undertake the freight cost.



2. Q: Do you offer customized products?

A: Yes, we offer customized products to fit the client's demands.



3. Q: What is the best way to contact you?

A: You can contact us by email, telephone, or online chat.



4. Q: How is the lifespan of the nozzle?

A: The lifespan of our nozzle is quite excellent. It is specially designed to meet the highest standards of product performance and quality. With proper maintenance, the nozzle can last for a long time and perform optimally.
