Product Details:
|
| Name: | Tungsten Carbide Button | Type: | Machining Services |
|---|---|---|---|
| Size: | OEM Accepted | Application: | For Oil Drilling Bits |
| Material: | Tungsten Carbide And Cobalt | Feedback: | Within 48 Hours |
| High Light: | YG13 Tungsten Carbide Button,Customized Tungsten Carbide Button,OEM Button Drill Bit |
||

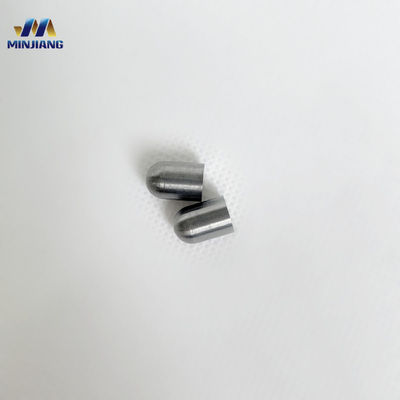

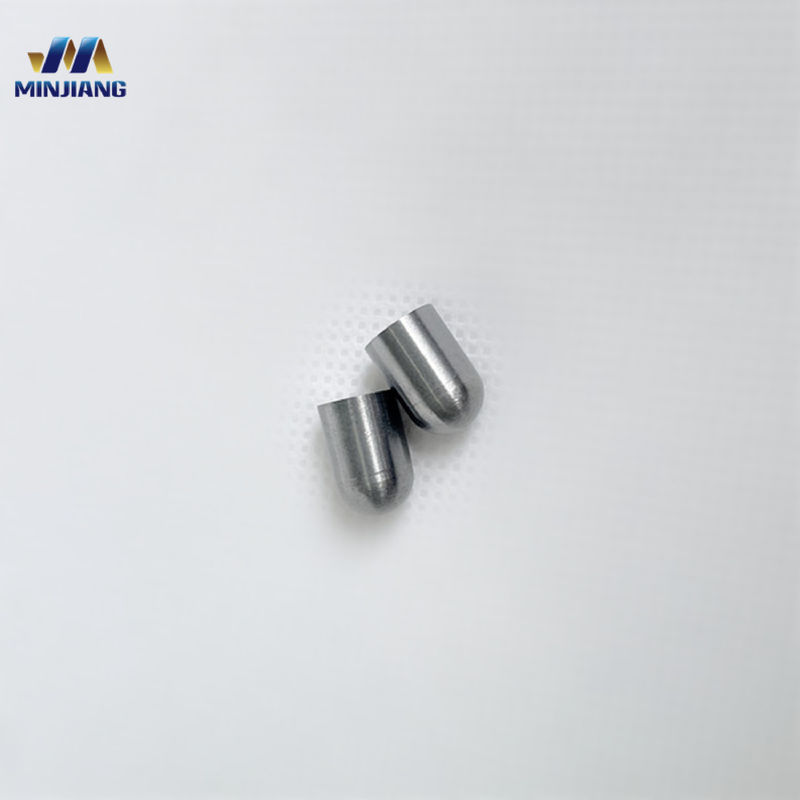

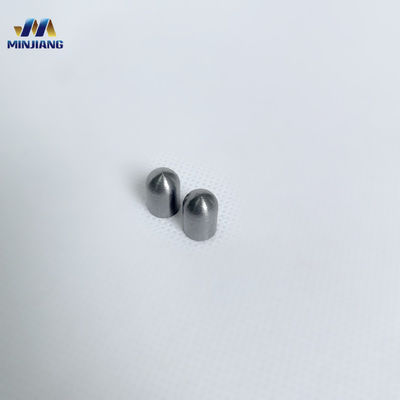

Tough YG6/8/11/13 Tungsten Carbide Button Enhancing Oil Drilling Efficiency
Tungsten carbide buttons are an exceptionally robust and hard material extensively employed in various industrial and tooling applications. This alloy, a fusion of tungsten and carbon, results in a material characterized by remarkable strength and resistance to wear and tear. It stands out as the material of choice for a multitude of tools, including drill bits, routers, and end mills, due to its ability to withstand the harshest conditions. Moreover, its popularity extends to wear-resistant components for mining and drilling equipment, where its durability shines. The preference for tungsten carbide buttons in industrial applications can be attributed to its unparalleled wear resistance, formidable strength, and a low coefficient of friction. These qualities translate into prolonged service life and enhanced performance.
Specification
|
Product Name |
Cemented Tungsten Carbide Button |
|
Brand |
Minjiang/HL |
|
Model |
Customized |
|
Material |
100% Virgin Tungsten Carbide |
|
Grade |
YG6/YG8/YG11/YG13 |
|
Usage |
Drill Bit |
|
MOQ |
10 Pieces |
Product Features
High Thermal Stability: Their ability to withstand high temperatures ensures consistent performance in heat-intensive tasks.
Low Friction: Tungsten carbide's low friction properties reduce heat generation during cutting.
Customization: These buttons can be customized to meet specific application needs.
Long Service Life: Their durability results in a longer service life and reduced maintenance requirements.
Cost-Effective: Tungsten Carbide Buttons are cost-effective due to their extended service life.
Minimal Maintenance: They require minimal maintenance, reducing downtime and costs.
Adaptability to Various Materials: These buttons can be used on a wide range of materials, enhancing versatility.
Optional Grades
| Grade | ISO Grade | Chemical Composition | Physical Properties | ||||
| WC% | CO% | Density g/cm3(±0.1) | Hardness HRA(±0.5) | TRS Mpa(min) | Grain Size(μ m) | ||
| YG6 | K20 | 94 | 6 | 14.85-15.00 | 90.5-92 | 1800 | 1.2-1.6 |
| YG6X | K15 | 94 | 6 | 14.80-15.00 | 91.7-93 | 1600 | ＜1.0 |
| YG8 | K30 | 92 | 8 | 14.62-14.82 | 89.5-91 | 1900 | 1.2-1.6 |
| YG9 | K40 | 91 | 9 | 14.40-14.60 | 89-90 | 1850 | 1.2-1.6 |
| YG9C | K40 | 91 | 9 | 14.50-14.90 | 87.5-89 | 1815 | 1.2-1.6 |
| YG11 | K40 | 89 | 11 | 14.35 | 89 | 3200 | 1.6-2.0 |
| YG11C | - | 89 | 11 | 14.20-14.40 | 87.5-89 | 2200 | 1.6-2.4 |
| YG13 | - | 87 | 13 | 14.10-14.30 | 87.5-89 | 2500 | 1.6-2.0 |
| YG13C | - | 87 | 13 | 14.05-14.25 | 85.8-87.3 | 2550 | 2.4-4.0 |
Company Concept
Innovation is the dynamic process of introducing fresh, imaginative elements into a system. It necessitates a blend of creativity, experimentation, and a readiness to venture into uncharted territories, all with the goal of generating groundbreaking ideas, products, services, or processes that hold the potential to profoundly benefit an organization. Innovation takes on a myriad of forms, ranging from the integration of cutting-edge technologies to the comprehensive overhaul of established products and services. It stands as a continuous, evolving journey that not only provides businesses with a competitive edge but also serves as a catalyst for economic growth.
By challenging conventional wisdom and reimagining existing systems, innovation acts as the gateway to unlocking unprecedented success. It encourages a culture of forward-thinking and adaptability that allows organizations to stay at the forefront of their respective industries. The willingness to embrace change and push the boundaries of the known is the essence of innovation, and it serves as the driving force behind the evolution of industries and societies, propelling them toward greater achievements.
Major Product Lines
FAQ
1. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
2. Q: Are the products high quality?
A: Yes. The raw material will be tested before bulk production, and we will check the physical properties, shape, and tolerance for ensuring qualified products before shipping.
3. Q: What is the primary application of Tungsten Carbide Buttons?
A: Tungsten Carbide Buttons are primarily used as inserts in various drilling and cutting tools. They are integral components in industries like mining, construction, and metalworking.
