| Place of Origin: | China |
|---|---|
| Brand Name: | XYMJ |
| Certification: | ISO9001 : 2018 |
| Model Number: | Customized |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Inner packing: wrapped by bubble bag,foam. Outer packing: standard export carton |
| Delivery Time: | 7-15 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 kilograms per month |
| Shaping Mode: | Slip Casting, HIP Sintering | Product Name: | Carbide Stamping Die |
|---|---|---|---|
| Size: | 0.015-20mm Customer Size Accepted | HRA: | 82-92 |
| TRS: | 1180-2250 N/mm3 | Model Number: | Customed |
| Application: | Cold Heading Of Hexagonal Bolt, Nut, And Screws | Precision: | As Per Request(defaults To ±1.5%) |
| High Light: | tungsten carbide wire drawing dies,tc wire drawing dies |
||

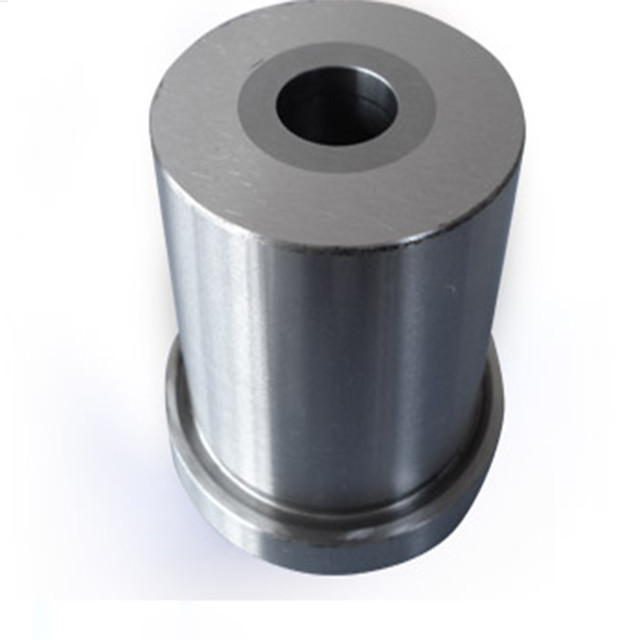

Tungsten Carbide Stamping Mould Blank For Cold Heading Hexagonal Nut Bolt Screw
Features of Tungsten carbide products
1. Material:100% virgin raw material .
2. Grade:Various grades for choice
3. Advanced production equipments and testing equipments
4. Precision Ground and polished
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , automatic pressing,HIP sintering and precision grinding.
Grade List
| Grade and Application | ||||
| Grade | Density (g/cm³) | Hardness (HRA) | Bend Strength (N/mm²) | Performance & Application Recommended |
| YG11 | 14.4 | 88.5 | 2600 | Forming of stamping dies for metal powders and nonmental powders |
| YG15 | 14 | 87.5 | 2800 | For fabricating drawing dies of steel tubesand rods under high |
| Compressibility ratio,punching ,stamping,forging tools under large stress. | ||||
| YG20 | 13.5 | 85.5 | 3200 | For fabricating of stamping dies for watch parts,spring plates of musical |
| Instruments,battery jars, small sized stell balls,screws.screw caps | ||||
| YG16C | 13.9 | 85.5 | 2900 | Impact resistance,hot & forging dies,etc. |
| YG18C | 13.7 | 84.5 | 3100 | Impact resistance forging dies,hot-press forging dies and rollers. |
| YG20C | 13.5 | 83.5 | 3300 | Dies for wear resistant or impact resistant application |
| YG22C | 13.3 | 83 | 3500 | Nut forming dies and high impact resistance forging dies |
| YG25C | 13.1 | 82.5 | 3600 | Stainless bolt header dies and rollers |
| Dimension | ||
| D | d | H |
| 10.0-44.0 | 1.5-6.0 | 20.0-60.0 |
| 32.0-50.0 | 6.2-10.0 | 32.0-60.0 |
| 40.0-40.0 | 11.4-15.0 | 20.0-60.0 |
| 40.0-+50.0 | 15.4-20.0 | 20.0-75.0 |
| 45.0-70.0 | 21.0-25.0 | 20.0-85.0 |
| 55.0-75.0 | 26.0-30.0 | 25.0-40.0 |
| 75.0-90.0 | 30.5-38.0 | 30.0-40.0 |
| 80.0-100.0 | 42.0-50.0 | 30.0-50.0 |
| 90.0 | 52.0 | 40.0 |
| 100.0 | 60.0 | 40.0 |
| 100.0 | 61.5 | 20.0 |
| 120.0 | 70.0 | 40.0 |
| 130.0 | 80.0 | 40.0 |
| 140.0 | 85.0 | 40.0 |
| Dimension | |||
| d | D | H | α° |
| 20 | 9 | 22 | 1° 30° |
| 20 | 9.4 | 22 | |
| 21 | 10.4 | 20 | |
| 25 | 12.2 | 20 | |
| 30 | 12.5 | 22 | |
| 25 | 13 | 20 | |
| 30 | 13 | 22 | |
| 36 | 18.8 | 22 | |
| 36 | 19.2 | 22 | |
| 32 | 19.4 | 20 | |
| 40 | 22 | 22 | |
| 38 | 22.5 | 20 | |
| 40 | 22.5 | 22 | |
| 40 | 23.5 | 22 | |
| 38 | 23.9 | 20 | |
| 40 | 24.2 | 22 | |
| 47 | 28.8 | 20 | |
| 47 | 30.8 | 20 | |
| 46 | 31.2 | 22 | |
| 47 | 31.8 | 20 | |
| Dimension | |||||||
| D | d | H | a° | D | d | H | a° |
| 14.0 | 2.1 | 15.0-30.0 | 20.0 | 30.0 | 8.4 | 25.0-54.0 | 20.0 |
| 16.0 | 2.1 | 15.0-30.0 | 30.0 | 10.0 | 14.0-20.0 | ||
| 14.0 | 3.1 | 15.0-30.0 | 28.0 | 10.2 | 25.0-54.0 | ||
| 16.0 | 3.1 | 15.0-30.0 | 30.0 | 10.2 | 25.0-54.0 | ||
| 14.0 | 3.9 | 15.0-35.0 | 40.0 | 11.9 | 30.0-40.0 | ||
| 16.0 | 3.9 | 15.0-35.0 | 40.0 | 12.0 | 10.0-14.0 | ||
| 16.0 | 4.5 | 10.0-20.0 | 40.0 | 14.0 | 14.0-20.0 | ||
| 16.0 | 4.7 | 15.0-35.0 | 45.0 | 17.5 | 14.0-20.0 | ||
| 18.0 | 4.7 | 20.0-35.0 | 45.0 | 19.5 | 20.0-30.0 | ||
| 20.0 | 6.5 | 20.0-42.0 | 50.0 | 21.0 | 20.0-30.0 | ||
| 22.0 | 6.5 | 10.0-42.0 | 60.0 | 24.0 | 25.0-30.0 | ||
| 30.0 | 8.0 | 10.0-20.0 | 60.0 | 26.5 | 25.0-30.0 | 12.0 | |
| 26.0 | 8.4 | 25.0-54.0 | 70.0 | 32.0 | 25.0-30.0 | ||
| Dimension | |||||||
| D | d | H | a° | D | d | H | a° |
| 13.0 | 2.8 | 30.0 | 90.0 | 30.0 | 6.4 | 30.0 | 90.0 |
| 16.0 | 3.8 | 30.0 | 30.0 | 6.4 | 55.0 | ||
| 16.0 | 3.8 | 40.0 | 36.0 | 8.2 | 55.0 | ||
| 22.0 | 3.8 | 50.0 | 40.0 | 10.0 | 55.0 | ||
| 16.0 | 4.6 | 30.0 | 45.0 | 10.0 | 55.0 | ||
| 22.0 | 4.6 | 50.0 | 60.0 | 13.8 | 60.0 | ||
Production Process
FAQ
A1: What is your main product?
Q1: The main product include tungsten carbide bar, carbide wire drawing die, carbide drill bit button, carbide SS10 tips, carbide strip and carbide plate, anvil, carbide inserts, and any other carbide products and customized products.
A2: Do you have certification on your products?
Q2: ISO 9001:2018
A3: What is about your general delivery date?
Q3: Normally 7-15 workdays .
A4: What is your packing?
Q4: We use standard export packing and customization is available.
A5: Can I get the samples?
Q5: Sure, contact us directly.
