| Place of Origin: | China |
|---|---|
| Brand Name: | XYMJ |
| Model Number: | customized |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Inner packing: wrapped by bubble bag,foam. Outer packing: standard export carton |
| Delivery Time: | 7-15 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 2000 kilograms per month |
| Material: | 100% Pure Raw Material | Length: | 300mm 310mm 330mm |
|---|---|---|---|
| HRA: | 89.90.5 | Shape: | Round |
| Application: | PCB Micro Drill, Drill Bits, End Mill, Reamers, Etc. | Product Name: | Tungsten Carbide Round Bar |
| High Light: | tungsten carbide bar,cemented carbide rods |
||

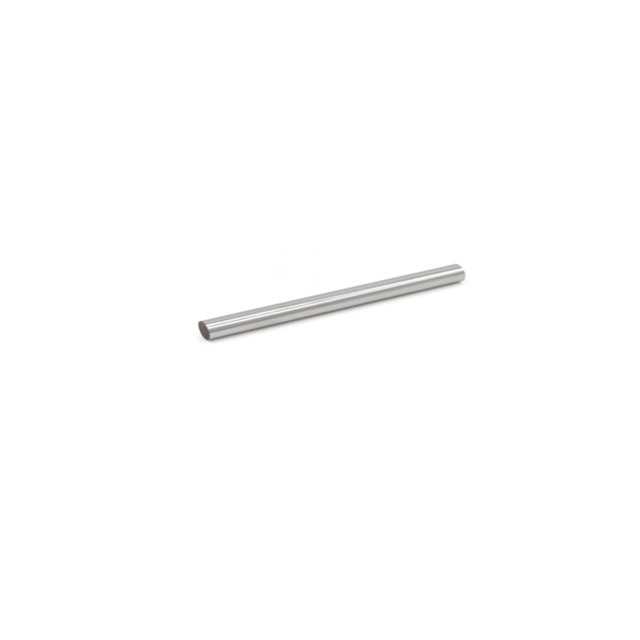

Cemented Fishing solid Tungsetn Carbide rod carbide blank rod
Mostly using as material making of end mills, reamers, etc, Cutting Tools.
We manufacture and supplier diameter from 2 to 45 Extrusion rods, length can be as requested.
Other size rods also can be produced, Offer OEM Service.
Tungsten carbide rods grade
Unground/Ground/Straight Holes/Helical Hole
YG10X, JF10 Grade, JF15 Grade, JF25 Grade
6% Cobalt, 10% Cobalt, 12% Cobalt mostly
HRC suits scope from 40-60
The main alloy composition are WC and Co. WC and Co powders are mixed together, and through powder process, ball-milling, pressing and sintering, they are made into tungsten carbide rod. The ratio of WC and Co determines its properties and applications. Cemented carbide rod has a wide application in many manufacturing fields. We manufacture a full range of carbide rod for different applications. We can make them in custom sizes and grades for our clients’ special uses.
Application
Tungsten carbide rod is suitable for treating solid wood, shaving board and middle-density fiberboard. Cemented carbide rod can be used to make woodworking tools, such as forming tool, reamer, serrated knife blade and various blades.
Advantage
1. Our carbide rod are marked by their excellent tensile strength, corrosion resistance, wear resistance, high hardness, high elasticity modulus and high compressive strength.
2. Tungsten carbide rod also has low impact toughness and low dilatation coefficient. The heat conduction and electron conduction are similar to iron and iron alloys.
3. All of our cemented carbide rod are made using high grade raw material and latest technology under the strict supervision of skilled engineers.
4. We offer a full range of tungsten carbide rod for many different application, and also prove custom service to meet the individual customer’s needs.
5. Cemented carbide rod has acquired the certificate of quality management system.
| Cobalt Binder Grades | ||||
| Grade | Binder(wt%) | Density(g/cm3) | Hardness(HRA) | TRS(≥N/mm2) |
| YG3 | 3 | 15.30 | 91.00 | 1180 |
| YG6 | 6 | 15.10 | 92.00 | 1420 |
| YG6X | 6 | 15.10 | 91.00 | 1600 |
| YG8 | 8 | 14.90 | 90.00 | 1600 |
| YG10 | 10 | 14.70 | 89.00 | 1900 |
| YG10X | 10 | 14.70 | 89.50 | 2200 |
| YG15 | 15 | 14.20 | 87.00 | 2100 |
| YG20 | 20 | 13.70 | 85.50 | 2500 |
| YG20C | 20 | 13.70 | 82.00 | 2200 |
| YG30 | 30 | 12.80 | 82.00 | 2750 |
Details Of Tumgsten Carbide Rod
| Outer Diameter (mm) | Inner Diameter (mm) | Length (mm) | OD Tolerance (mm) | ID Tolerance (mm) | Length Tolerance (mm) |
| φ2-7 | φ0.4-3.0 | 330 |
+0.6 +0.2 |
+0.0 -0.2 |
+7.0 +3.0 |
| φ8-11 | φ0.4-7.0 | 330 |
+7.0 +3.0 |
+0.0 -0.2 |
+7.0 +3.0 |
|
φ12-19+7.0
|
φ0.4-10.0 | 330 |
+0.9 +0.4 |
+0.0 -0.3 |
+7.0 +3.0 |
| φ20-30 | φ0.4-16.0 | 330 |
+0.1 +0.5 |
+0.0 -0.3 |
+7.0 +3.0 |
| Specification D*L | Diameter Tolerance (mm) | Length Tolerance (mm) | Specification D*L | Diameter Tolerance (mm) | Length Tolerance (mm) |
| φ1.0-2.5*330 |
+0.25 +0.15 |
+7.0 +3.0 |
φ15.9-19.5*330 |
+0.60 -0.30 |
+7.0 +3.0 |
| φ3.0-9.5-330 |
-0.40 +0.20 |
+7.0 +3.0 |
φ20.0-29.5*330 |
+7.0 +0.40 |
+7.0 +3.0 |
| φ10.0-15.0*330 |
+0.50 +0.30 |
/ | / | / | / |
| Outer Diameter (mm) | Double Inner Hole Diameter (mm) | Pitch-raw TK(mm) | Length (mm) | OD Tolerance (mm) | ID Tolerance (mm) | Pitch-raw TK(mm) | Length Tolerance (mm) |
| φ4-11 | φ0.8-1.4 | 1.72-4.85 | 330 |
+0.4 +0.3 |
±0.10 | ±0.20 |
+7.0 +3.0 |
| φ12-19 | φ1.75-2.0 | 5.85-8.85 | 330 |
+0.7 +0.4 |
±0.15 | ±0.25 |
+7.0 +3.0 |
| φ20-24 | φ2.5 | 9.80-11.75 | 330 |
+0.8 +0.5 |
±0.20 | ±0.30 |
+7.0 +3.0 |
| φ25-30 | φ3.0 | 11.75-13.75 | 330 |
+0.9 +0.6 |
±0.25 | ±0.35 |
+7.0 +3.0 |
Production Process
FAQ
Q1: How long is your delivery period?
A1: It depends on specific conditions. However, it could be 10 to 15 days on average.
Q2: Do you offer samples?
A2: Yes, we do offer samples. However, buyers need to pay for the freight charge. In addition, whether samples are free or not depends on the quantity you buy.
Q3: How do you pack the products?
A3: In general, we use wood, plastic or carton boxes. We also put some soft materials inside to prevent possible damage on products.
Q4: How much advance payment do I need to make?
A4: If the products you buy are in stock, you need to make full payment; if the products are out of stock, you need to make about 50 percent of full payment and then we will start the production process. However, you still need to pay the rest of charges before we deliver the products.
Q5: What kinds of payment do you accept?
A5: In addition to the patterns of payment shown above, you can discuss with us about in which way you would like to pay.
Please contact us if you have any other questions.
