| Shaping Mode: | Preform Mould | Product Name: | Carbide Drawing Die |
|---|---|---|---|
| Size: | 0.015-20mm Customer Size Accepted | HRA: | 82-92 |
| TRS: | 1180-2250 N/mm3 | Model Number: | Customed |
| Application: | Drawing Steel/ Non-ferrous Wires | Mould Base: | Stainless Steel/ Steel |
| High Light: | tungsten carbide mould,tc wire drawing dies |
||

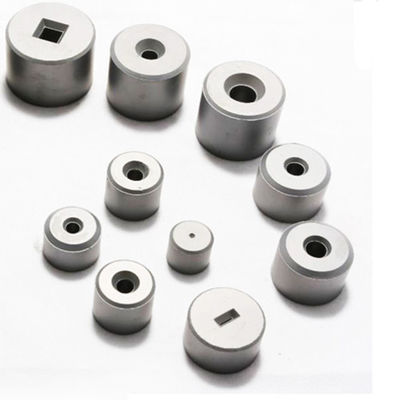

Custom Tungsten Carbide Progressive Die Deep Wire Drawing Die
Application
Cemented carbide wire drawing die as a tool material has been increasingly used for cutting tools, wear-resistant tools, impact-resistant tools, and other products with special purpose. Cemented carbide was first used in stretching mold area and has gone though cast iron mold, alloy steel mold, diamond dies, cemented carbide dies, polycrystalline module die and other developmental stages. With the property of high wear resistance, good polishing performance, low friction coefficient, etc., cemented carbide drawing die has been a substitute of steel mould which is used to stretching steel and non-ferrous metal.
Tungsten Carbide Wire Guide Wire Drawing Dies
We choose best tungsten carbide core, to make the drawing dies with high hardness,Good good thermal conductivity, low coefficient of friction. It is suitable for drawing black metal,wire drawing, large size of tube, low working environment required.
Advantages
1. simple manufacture
2. corrosion resistance
3. strong impact resistance
4. quite low manufacturing cost
The Tungsten carbide Wire Drawing Die is a tool that consists of highly polished, shaped hole through which wire is drawn to reduce its diameter.
Grade List
| Grade | Co (wt%) | Density (g/cm³) | Hardness (HRA) | TRS (≥N/mm²) | Applications |
| XC100 | 5.8-6.2 | 14.6-15.0 | 91.5-92.5 | 2000 | Wire drawing dies for wear-resistance impact-resistance |
| XC101 | 5.8-6.2 | 14.6-15.0 | 91.5-92.5 | 2500 | |
| XC200 | 7.8-8.2 | 14.5-14.9 | 91.0-92.0 | 2100 | |
| XC201 | 7.8-8.2 | 13.5-14.9 | 91.0-92.0 | 2800 | |
| XC300 | 9.8-10.3 | 14.2-14.6 | 90.5-91.5 | 2600 | |
| XC301 | 9.8-10.3 | 14.2-14.6 | 90.5-91.5 | 3200 | |
| XC500 | 14.7-15.3 | 13.9-14.2 | 87.0-88.0 | 2600 | Stamping dies for impact-resistance |
| XC501 | 14.7-15.3 | 13.9-14.2 | 87.0-88.0 | 2800 | |
| XC800 | 19.5-20.5 | 13.4-13.6 | 83.0-84.0 | 2600 | |
| XC8001 | 19.5-20.5 | 13.4-13.6 | 83.0-84.0 | 3000 | |
| XC900 | 23.0-23.5 | 13.1-13.4 | 82.5-83.5 | 2400 | |
| XC901 | 23.0-23.5 | 13.1-13.4 | 82.5-83.5 | 2600 | |
| Grade | Co+Ni (wt%) | Density (g/cm³) | Hardness (HRA) | TRS (≥N/mm²) | Applications |
| XCN61 | 16.0-17.0 | 13.5-14.0 | 83.5-84.5 | 3200 | Stamping dies for High temperature-resistance |
| XCN71 | 17.0-18.0 | 13.3-13.8 | 82.0-83.0 | 3000 |
| Dimension | |||||
| d | l | d1 | h | h1 | ll |
| 8 | 6 | 0.1-1.0 | 0.1-10.6 | 1.0-2.0 | 0.8-1.2 |
| 10 | 8 | 0.1-1.2 | 0.1-0.8 | 1.5-4.0 | 1.0-1.8 |
| 12 | 10 | 0.2-2.0 | 0.1-1.5 | 2.0-5.0 | 1.6-2.5 |
| 14 | 12 | 0.4-2.5 | 0.2-2.0 | 4.0-5.0 | 1.8-2.5 |
| 16 | 13 | 0.5-3.0 | 0.2-2.5 | 4.0-5.5 | 2.0-3.0 |
| 20 | 17 | 1.0-6.0 | 0.6-3.0 | 5.0-8.0 | 2.5-4.0 |
| 25 | 20 | 2.0-8.5 | 1.0-3.5 | 7.0-10.0 | 3.0-4.5 |
| 30 | 24 | 3.5-12.0 | 2.0-4.0 | 8.0-12.0 | 3.0-5.0 |
| Notice: α=8°10° 12° 14°16°18° β=40° 60° 90° γ=60° 75° 90° | |||||
| Dimension | |||||
| ΦD | b | H | α | β | γ |
| 6.0-8.0 | 0..2 | 4.0-6.0 | 10° | 40° | 60° |
| 6.0-8.0 | 0.4-0.8 | 4.0-6.0 | 40° | * | |
| 8.0-22.0 | 0.4-5.7 | 6.0-20.0 | 10°-14° | 40° | |
| 8.0-26.0 | 0.4-8.0 | 6.0-16.0 | 16° | 40° | |
| 30.0-140.0 | 3.7-84.0 | 21.0-50.0 | 14°-20° | * | |
| Dimension | |||||
| ΦD | Φd | H | α | γ | R |
| 16.0-110.0 | 2.0-60.0 | 14-52 | 3° | 60° | 40 |
| 16.0-110.0 | 20.0-62.0 | 35-45 | 4° | 15.0-40.0 | |
| 16.0-110.0 | 2.8-88.0 | 13-50 | 24° | 3.0-10.0 | |
| 16.0-110.0 | 20.0-70.0 | 32-55 | * | 3.0-40.0 | |
| Dimension | |||||
| d | l | A | h | h1 | ll |
| 16 | 12 | 1.5-2.5 | 0.5-1.5 | 4.0-6.0 | 1.0-2.0 |
| 22 | 18 | 2.0-4.0 | 1.0-2.0 | 5.5-9.0 | 1.5-2.5 |
| 30 | 21 | 3.5-7.0 | 1.5-2.5 | 8.0-12.0 | 1.5-2.5 |
| 35 | 25 | 6.5-10.0 | 2.5-3.5 | 10.0-14.0 | 2.0-4.0 |
| 45 | 25 | 8.0-15.0 | 3.0-4.0 | 10.0-14.0 | 2.0-4.0 |
| 50 | 28 | 12.0-20.0 | 3.5-4.5 | 12.0-16.0 | 2.0-4.0 |
| 60 | 30 | 18.0-25.0 | 4.0-5.5 | 12.0-16.0 | 3.0-5.0 |
| 65 | 32 | 22.0-30.0 | 5.0-7.0 | 12.0-16.0 | 4.0-6.0 |
| 70 | 35 | 26.0-35.0 | 6.0-9.0 | 14.0-18.0 | 5.0-7.0 |
| 80 | 35 | 30.0-40.0 | 6.0-9.0 | 14.0-18.0 | 5.0-7.0 |
| 90 | 40 | 35.0-45.0 | 6.0-9.0 | 14.0-18.0 | 5.0-7.0 |
| 100 | 40 | 40.0-50.0 | 6.0-9.0 | 14.0-18.0 | 5.0-7.0 |
| 120 | 45 | 45.0-55.0 | 6.0-9.0 | 14.0-18.0 | 5.0-7.0 |
| Note:α=14° 16° 20° β=40° γ=60° | |||||
| Dimension | ||||||
| d | l | A | B | h | h1 | ll |
| 20 | 12 | 1.5-3.5 | 0.5-1.5 | 1.5-2.5 | 3.0-5.0 | 1.5-2.5 |
| 22 | 12 | 3.0-5.0 | 0.5-2.0 | 1.5-2.5 | 3.0-5.0 | 1.5-2.5 |
| 25 | 15 | 3.5-7.0 | 0.5-4.0 | 2.0-3.0 | 4.0-6.0 | 2.0-3.0 |
| 32 | 16 | 5.0-9.0 | 1.5-4.0 | 2.0-3.0 | 4.0-6.0 | 2.0-3.0 |
| 35 | 18 | 7.0-12.0 | 1.0-6.0 | 2.0-3.0 | 5.0-8.0 | 2.0-3.0 |
| 25 | 7.0-12.0 | 2.0-8.0 | 2.5-3.5 | 7.0-13.0 | 2.5-3.5 | |
| 45 | 20 | 10.0-15.0 | 1.0-7.0 | 2.5-3.5 | 5.0-8.0 | 2.5-3.5 |
| 25 | 10.0-15.0 | 4.0-10.0 | 3.0-4.0 | 7.0-14.0 | 2.5-3.5 | |
| 50 | 20 | 12.0-24.0 | 1.0-8.0 | 2.5-3.5 | 5.0-96.0 | 2.5-3.5 |
| 28 | 12.0-24.0 | 6.0-16.0 | 3.0-4.0 | 8.0-15.0 | 2.5-3.5 | |
| 60 | 20 | 18.0-32.0 | 1.0-9.0 | 2.5-4.0 | 5.0-10.0 | 2.5-3.5 |
| 30 | 18.0-32.0 | 7.0-16.0 | 4.0-6.0 | 8.0-16.0 | 3.0-5.0 | |
| Note: α=° 14°18° β=40° 60° γ=60° | ||||||
