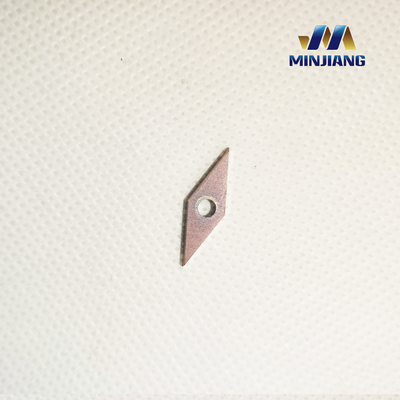

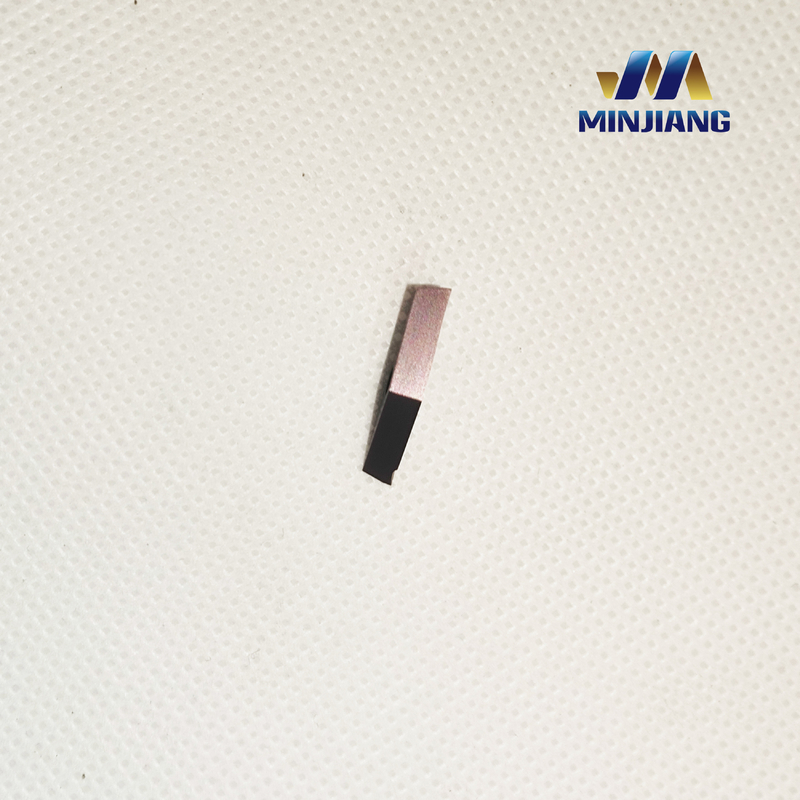

Customized High-Hardness Carbide Turning Inserts for CNC Machining

Customized High-Hardness Carbide Turning Inserts for CNC Machining
Customized High-Hardness Carbide Turning Inserts for CNC Machining Customized High-Hardness Carbide Turning Inserts for CNC Machining Customized High-Hardness Carbide Turning Inserts for CNC Machining

Large Image :  Customized High-Hardness Carbide Turning Inserts for CNC Machining

Product Details:
Place of Origin: China
Brand Name: HL
Certification: ISO9001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: 1-50USD
Packaging Details: Packed In Paper Box
Delivery Time: 35 Working Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10000 Pcs Per Month
Contact Now

Customized High-Hardness Carbide Turning Inserts for CNC Machining

Description
Shape: Customized Sample: Available
Usage: General High Speed Cutting Trial Order: Accepted
Surface Finishig: Polishing,coating,etc. Advantage: Competitive
Standard Or Nonstandard: Standard Or Nonstandard Feature: Wear Resistance
Highlight:

high-hardness carbide turning inserts

,

tungsten carbide CNC cutting tools

,

carbide inserts for machining efficiency

Maximize Machining Efficiency with Our High-Hardness Carbide Turning Inserts



Crafted from ultra-hard tungsten-carbon composite, our tungsten carbide CNC cutting tools provide exceptional durability and precision for all metalworking applications. They retain razor-sharp edges through prolonged use and effortlessly machine materials ranging from aluminum to titanium with outstanding accuracy. Ideal for producing complex geometric features such as precision holes and slots, these tools are available in customizable configurations to support versatile operations. Combining industrial-grade performance with cost-efficient productivity, they redefine modern machining standards.


Material


According to the different binder contents, cemented carbide can be divided into different grades, such as YG, YT and YW . These grades have different performance characteristics and are suitable for different processing materials and processing conditions.


Grade WC(%) TIC(%) TaC/NbC(%) Co(%) Density(t/m³) Thermal conductivity(W/m·K) Hardness(HRA) Flexural strength(/GPa)
YG3X 97 - <0.5 3 14.9-15.3 87.92 91.5 1.08
YG6X 93.5 - 0.5 6 14.6-15.0 75.55 91 1.37
YG6 94 - - 6 14.6-15.0 75.55 89.75 1.42
YG8 92 - - 8 14.5-14.9 75.36 89 1.47
YG10C 90 - - 10 14.3-14.9 75.36 88 1.72
YT30 66 30 - 4 9.3-9.7 20.93 92.5 0.88
YT15 79 15 - 6

11.0-11.7

 33.49 91 1.13
YT14 78 14 - 8 11.2-12.0 33.49 90.5 1.77
YT5 85 5 - 10 12.5-13.2 62.80 89 1.37
YG6A 91 - 3 6 14.6-15.0 - 91.5 1.37
YG8A 91 - 1 8 14.5-14.9 - 98.5 1.47
YW1 84 - 4 8 12.8-13.3 - 91.5 1.18
YW2 82 - 4 8 12.6-13.0 - 90.5 1.32


Properties&Application


Grade Properties Application
YG3X Fine particle alloy with good wear resistance and poor impact toughness. Finishing of cast iron, nonferrous metals, finishing of alloy steel, hardened steel, tungsten and molybdenum materials
YG6X Fine-grained alloy with good wear resistance and impact toughness. Semi-finishing and finishing of cast iron, chilled cast iron, alloy cast iron, heat-resistant steel and alloy steel.
YG6 Good wear resistance and impact resistance. Rough and semi-finishing of cast iron, non-ferrous metals and alloys, and non-metals.
YG8 Higher strength, better impact resistance, poor wear resistance. Rough machining of cast iron, non-ferrous metals and alloys, interrupted cutting is possible
YT30 Good red hardness and wear resistance, but low strength, not impact resistant, prone to welding and grinding cracks. Finishing of carbon steel and alloy steel during continuous cutting.
YT15 Good wear resistance and red hardness, but poor impact resistance. Semi-finishing and finishing of carbon steel and alloy steel during continuous cutting.
YT14 Higher strength and impact toughness, but lower wear resistance and red hardness than YT15. Roughing, semi-finishing and finishing of carbon steel and alloy steel during continuous cutting.
YT5 Good strength and impact toughness, not easy to chip, but poor wear resistance. Rough machining of carbon steel and alloy steel during continuous cutting, and can be used for continuous cutting.
YG6A Fine-grained alloy with good wear resistance and strength. Semi-finishing and finishing of hard cast iron, ductile iron, non-ferrous metals and alloys, high manganese steel, alloy steel, and hardened steel.
YG8A Medium-grained alloy with good strength and poor red hardness. Rough and semi-finishing of hard cast iron, ductile iron, white iron, non-ferrous metals, alloys and stainless steel.
YW1 Good red hardness, wear resistance, impact resistance and versatility. Semi-finishing and finishing of stainless steel, heat-resistant steel, high manganese steel and other difficult-to-process materials.
YW2 Poor red hardness and wear resistance, but high strength and impact resistance. Semi-finishing and finishing of stainless steel, heat-resistant steel, high manganese steel and other difficult-to-process materials.



Related Products


Customized High-Hardness Carbide Turning Inserts for CNC Machining 0

Innovation As Always

Price: Eliminating intermediaries means significantly lower costs. Our direct-to-customer model removes unnecessary markups, allowing us to offer competitive prices while maintaining premium quality—giving you exceptional value.

Environmental sustainability: Innovation can help address environmental challenges by developing new technologies and products that reduce pollution, conserve natural resources, and promote sustainable practices.

Economic growth: Innovation is a key driver of economic growth, as it can lead to the creation of new industries and markets, and stimulate investment and entrepreneurship.



FAQ

1. Q: What is the best way to contact you?
A: You can contact us by email, telephone, or online chat.

2. Q: What is your minimum order quantity?
A: Our minimum order quantity will vary depending on the product.


3. Q: What payment methods do you accept?

A: We accept payment by bank transfer and Western Union.
