Product Details:
|
| Material: | 100% Virgin Tungsten Carbide | Size: | Customized Size |
|---|---|---|---|
| Application: | Petroleum Machinery | Sample: | Available |
| Order: | Accept Trial Order | Properties: | High Hardness |
| High Light: | Oil And Gas Industry Cemented Carbide Material,High Hardness Cemented Carbide Material,OEM Cemented Carbide Material |
||

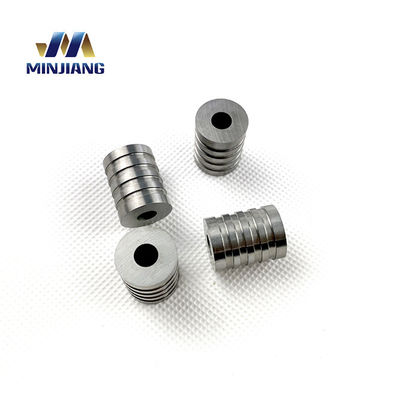

Tungsten carbide wear parts are essential components used in many industries and applications. They are designed to resist wear, corrosion, and heat. Tungsten carbide wear parts are made from an alloy of tungsten and carbon, which gives them their hardness, strength, and durability. They are used in a variety of applications from automotive and aerospace to medical and industrial. Tungsten carbide wear parts are used in the drilling and machining of metal, plastics and wood. They are also used in the manufacturing of tools and components for electronics, packaging, and die-casting. Tungsten carbide wear parts offer excellent performance in extreme temperature and pressure conditions and are used in applications where high wear resistance is required. They are also used in medical implants and as cutting tools in the food processing industry. Tungsten carbide wear parts can be customized to meet the specific requirements of the customer. They are available in a variety of shapes and sizes and can be adapted to fit any application.
| Grade | ISO Grade | Chemical Composition | Physical Properties | Applications | |||||||
| WC% | CO% | Density g/cm3(±0.1) | Hardness HRA(±0.5) | TRS Mpa(min) | Grain Size(μ m) | ||||||
| YG6 | K20 | 94 | 6 | 14.85-15.00 | 90.5-92 | 1800 | 1.2-1.6 | Carbide burr. | |||
| YG6X | K15 | 94 | 6 | 14.80-15.00 | 91.7-93 | 1600 | ＜1.0 | High wear resistance and higher, strength. Machining of chilled alloy cast irons and refractory alloy steel or finishing of common cast irons. | |||
| YG8 | K30 | 92 | 8 | 14.62-14.82 | 89.5-91 | 1900 | 1.2-1.6 | Wire drawing dies and non-standard structure and mechanical component and valve ball. | |||
| YG9 | K40 | 91 | 9 | 14.40-14.60 | 89-90 | 1850 | 1.2-1.6 | Flow sleeves, bushings, rings. | |||
| YG9C | K40 | 91 | 9 | 14.50-14.90 | 87.5-89 | 1815 | 1.2-1.6 | Nozzles, for the petroleum. | |||
| YG11 | K40 | 89 | 11 | 14.35 | 89 | 3200 | 1.6-2.0 | Nozzle, buttons, hemisphere, drilling teeth for the petroleum industry. | |||
| YG11C | - | 89 | 11 | 14.20-14.40 | 87.5-89 | 2200 | 1.6-2.4 | Inserts for mining and high-pressure nozzles in the petroleum, chemical, and mechanic industries. | |||
| YG13 | - | 87 | 13 | 14.10-14.30 | 87.5-89 | 2500 | 1.6-2.0 | Sleeves and bushings. | |||
| YG13C | - | 87 | 13 | 14.05-14.25 | 85.8-87.3 | 2550 | 2.4-4.0 | Alloy teeth and brazing bits. | |||
