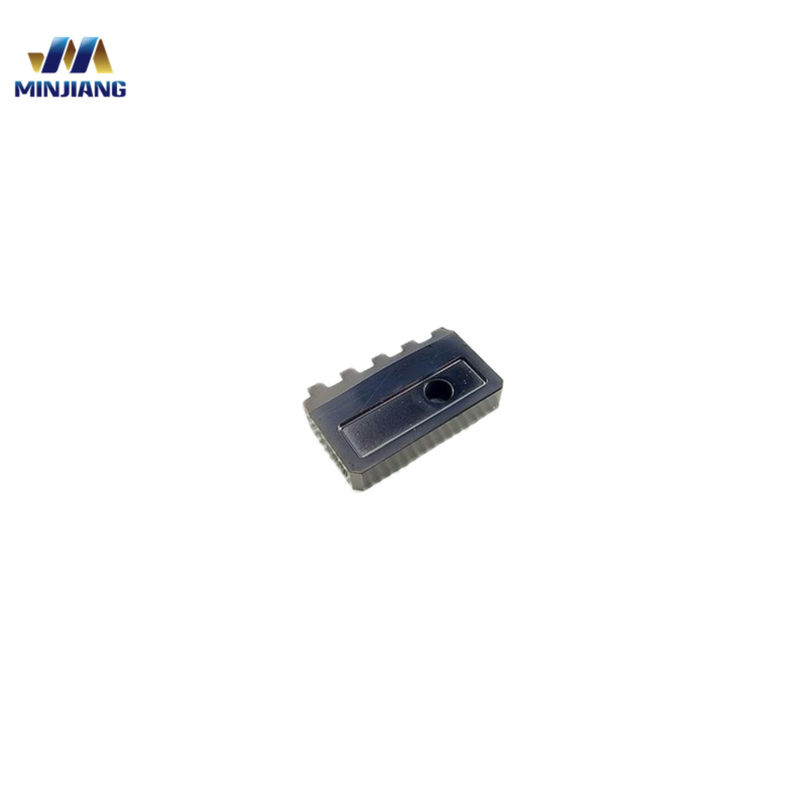

Carbide Precision Threading Inserts for Efficient Thread Creation

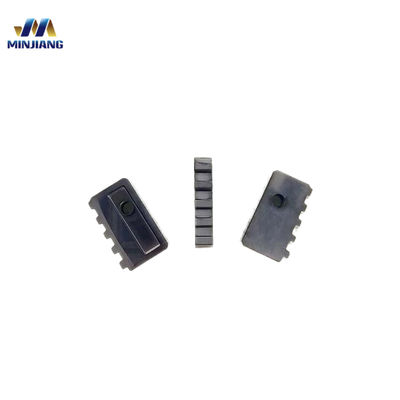

Carbide Precision Threading Inserts for Efficient Thread Creation

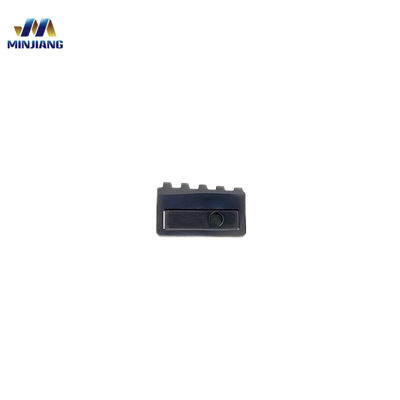

Carbide Precision Threading Inserts for Efficient Thread Creation
Carbide Precision Threading Inserts for Efficient Thread Creation Carbide Precision Threading Inserts for Efficient Thread Creation Carbide Precision Threading Inserts for Efficient Thread Creation Carbide Precision Threading Inserts for Efficient Thread Creation

Large Image :  Carbide Precision Threading Inserts for Efficient Thread Creation

Product Details:
Place of Origin: China
Brand Name: HL
Certification: ISO9001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Packed In Paper Box
Delivery Time: 35 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 Pcs Per Month

Carbide Precision Threading Inserts for Efficient Thread Creation

Description
Material: MC3/MC3+L Type: Machining Services
Size: OEM Accepted Application: For Steel Pipes Surface Cutting
Product Name: Tungsten Inserts Sample: Available

Carbide Precision Threading Inserts for Efficient Thread Creation




Description



Carbide threading inserts, crafted from the exceptionally hard and durable carbide material, surpass the hardness and durability of traditional steel. These inserts find application in the creation of internal and external threads across a spectrum of materials, encompassing steel, stainless steel, aluminum, brass, bronze, and plastic. Engineered to deliver a precise thread form and an enhanced surface finish, carbide threading inserts outperform traditional cutting tools. Available in diverse shapes and sizes tailored to specific thread types and threads per inch requirements, these inserts offer versatility in application. They seamlessly integrate with various cutting tools and techniques, including thread milling and thread tapping. Carbide threading inserts stand as an optimal choice for precision threading applications, ensuring users attain threads of the highest quality while benefiting from extended tool life.



Catogories of Products



  • Turning Inserts: Turning inserts are designed for use in turning operations on a CNC machine. These inserts typically have four cutting edges and are used to create smooth, high-quality finishes.
  • Milling Inserts: Milling inserts are designed for use in CNC milling machines. They are usually made from carbide and feature multiple cutting edges, allowing for the production of complex shapes and surfaces.
  • Drilling Inserts: Drilling inserts are designed for use in CNC drilling operations. These inserts are typically made from carbide and are used to create precise holes in a variety of materials.
  • Reaming Inserts: Reaming inserts are designed to be used in CNC reaming operations. These inserts typically have multiple cutting edges and are used to create high-precision holes in a variety of materials.
  • Boring Inserts: Boring inserts are designed for use in CNC boring operations. These inserts typically have multiple cutting edges and are used to create high-precision holes in a variety of materials.



Product Features



  • Material Excellence:Crafted from high-grade tungsten carbide, ensuring exceptional hardness and wear resistance.
  • Specialized Design:Designed for utilization in dedicated tool holders, facilitating rotation, cutting, and precise thread formation.
  • Versatile Shapes and Sizes:Available in a diverse range of sizes and shapes, including spiral points, straight flutes, and V-shaped, catering to various threading applications.
  • Application Specificity:Each type of threading insert is purposefully designed for specific applications, ensuring optimal performance.
  • Precision Threading:Enables precise and consistent threading, guaranteeing a uniform appearance for the workpiece.



 Materials



The selection of thread cutting insert materials varies depending on the workpiece material to achieve better cutting performance.

Some optional Carbide Grade:

Metal Grade performance and use

MC1

MC1 exhibits exceptional matrix red hardness and remarkable toughness, making it ideally suited for processing with high-efficiency threading machines. Furthermore, it is perfectly compatible with the threading requirements of oil pipes, casings, and couplings that belong to medium steel grades and secondary high steel grades, encompassing materials like J55, K55, N80, L80.

MC2

MC2 boasts high matrix strength, excellent red hardness, and good impact resistance. It is suitable for high-efficiency threading machine processing of medium to high steel grade oil pipes, casings, and coupling threads, such as N80 and P110.

MC3

MC3 boasts good overall mechanical properties in its matrix, along with stable cutting performance. It is suitable for high-efficiency threading machine processing of oil pipes, casings, and coupling threads that belong to low, medium, and secondary high steel grades, such as H40, J55, M65, C75, N80, and similar specifications.

P35

P35 utilizes a matrix with high strength and excellent red hardness, making it suitable for processing the threads of drill pipes, oil drilling collars, sucker rods, and other related equipment.

YT15

Depending on the specific application, it can be coated or uncoated, and possesses good red hardness and toughness. It is suitable for use in the manufacturing of specialized chip breakers for thread cutting combs and other cutting tools.

S Material

Exhibits excellent wear resistance and high-temperature red hardness, making it suitable for the internal threading of medium to high alloy steels.



Thread Profile

Name Description Features Application Areas
ISO ISO Metric Full Profile Thread Insert is a tool with a complete thread profile, designed to meet ISO Metric thread standards.
Complying with ISO standards ensures that the processed threads have uniform size and precision, and the full-profile design improves processing efficiency. Made of high-quality materials, with high hardness and wear resistance
  • ISO metric full-tooth thread inserts are widely used in machinery manufacturing, automobile manufacturing, aerospace, petrochemical and other fields.
W Threads specially designed for pipe connections The tooth angle of Whitworth thread is 55°, which is different from many other thread standards. The rounded top and bottom of the thread can reduce the wear of the thread tool on the top and improve its fatigue resistance.



  • Oil drilling: Whitworth threads can ensure the tightness and tensile strength of the connection.
  • Pipeline system: Applicable to pipeline systems in the oil, natural gas, chemical and other industries.
  • Manufacturing: In the manufacturing industry, Whitworth threads are also often used in situations where high-precision and reliable connections are required.



TR 30° Trapezoidal thread Trapezoidal thread refers to a metric trapezoidal thread with a tooth angle of 30°.Trapezoidal threads are mainly used for transmission, have high strength and rigidity requirements, are not easy to loosen, and have high transmission efficiency.
  • Trapezoidal threads are widely used in CNC machine tools, automated production lines, heavy equipment, etc.
ACME ACME trapezoidal thread cutter is a tool specially designed for processing ACME trapezoidal threads, with specific angle and shape design.
The ACME thread usually has a tooth angle of 29° (there are other angles such as 30°, but 29° is the most common), and the tooth profile is trapezoidal, wider at the bottom and narrower at the top.



  • Mechanical connection: ACME trapezoidal threads are often used to connect key components such as shafts, gears, and bearings.
  • Transmission system: In the transmission system, ACME trapezoidal threads can be used to transmit torque and power.
  • Oil and gas industry: ACME trapezoidal threads are often used to connect key equipment such as pipelines and valves.
  • Other industrial fields: It is widely used in metallurgy, chemical industry, textile and other industries.



UNJ UNJ thread is a mechanical thread with high strength and durability, especially suitable for applications requiring high strength and reliable connection.
High strength: Compared with cUNJ threads have higher strength. The external thread bottom of UNJ threads is in an arc shape. This design helps to reduce stress concentration and increase the fatigue life of the threads.
  • UNJ threads are widely used in aerospace, defense and related industries.
NPT The NPT thread has a tooth angle of 60° and a taper of 1:16.
NPT threads can provide reliable sealing performance. NPT threads comply with the US National Pipe Thread Standard (ANSI/ASME B1.20.1, etc.) and have good versatility and interchangeability.



  • Pipeline system: NPT threaded connectors are often used for fastening, sealing and connection.
  • Petroleum and chemical industry: In water pumps, pipelines and valves in oil wells, NPT connectors are used for connection and sealing.
  • Compressed air system: NPT threaded connectors are used to connect compressed air pipes, air filters, air dryers and other equipment and components.
  • Other industrial fields: NPT threads are also often used for branch connections of various pipeline systems.



NPTF NPTF thread is a thread standard for pipe connections developed by the American National Standards Institute (ANSI), mainly used in North America.
Sharp tooth shape and short root: higher connection stability and security. NPTF thread has good self-locking performance, can provide greater load-bearing capacity, high tooth shape accuracy, and can prevent leakage without sealing medium.



  • Pipeline systems: NPTF threaded joints are often used for tightening, sealing and connection.
  • High-pressure systems: NPTF threads are particularly suitable for high-pressure systems because they can prevent leakage without sealing media.
  • Large equipment and projects: Due to the large load-bearing capacity of NPTF threads, they are also widely used in some large equipment and projects.



Carbide Precision Threading Inserts for Efficient Thread Creation 0



Quality Guarantee


At MINJIANG, we stand by our commitment to ensure that our carbide threading inserts not only meet but exceed the expectations of our customers. We take immense pride in the quality of our products, assuring that they are manufactured to the highest standards. Our carbide threading inserts are meticulously crafted from high-grade materials, engineered to deliver superior performance across a diverse range of applications. Our guarantee encompasses the assurance that our carbide threading inserts will be devoid of defects and will precisely meet all dimensional requirements. Additionally, we pledge resistance to wear, abrasion, and corrosion, ensuring the longevity and durability of our inserts. Employing state-of-the-art manufacturing technologies and processes, we prioritize precision and accuracy in the production of our inserts. Committed to providing unparalleled service, we offer a satisfaction guarantee, promising to replace any defective product. Furthermore, our products come with a warranty, and we are dedicated to promptly repairing or replacing any item that falls short of our stringent standards within a reasonable timeframe. At MINJIANG, our unwavering dedication revolves around delivering products and services of the utmost quality. We confidently guarantee that our carbide threading inserts will deliver unparalleled performance and satisfaction, fostering confidence in our customers regarding the superior quality of our inserts.


Carbide Precision Threading Inserts for Efficient Thread Creation 1

FAQ

1. Q: Do you offer customized products?

A: Yes, we often make customized products.



2. Q: What is the lead time?

A: Lead time can vary depending on the product and quantity ordered but typically ranges from 1-4 weeks.



3. Q: What is the best way to contact you?

A: You can contact us by email, telephone, or online chat.



4. Q: Can carbide threading inserts be used for thread repair?

A: Yes, carbide threading inserts are versatile and can be employed for thread repair. Their quick and easy replacement capability makes them a convenient solution for restoring threads to their optimal condition.
