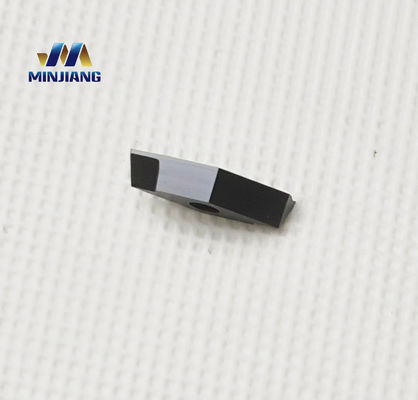

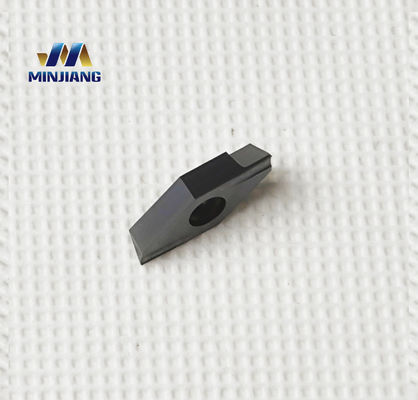

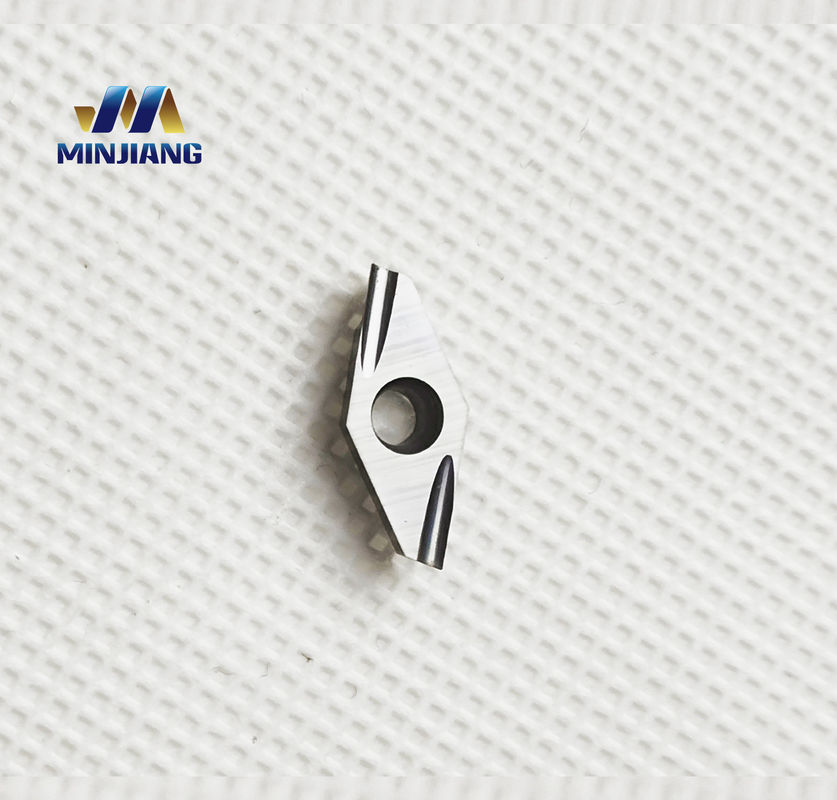

Rhombus 35° High Wear Resistance Tungsten Carbide CNC Cutting Tools Inserts





Tungsten carbide is one of the most common materials used in CNC cutting tools. It is a very hard and versatile material that is used to make a variety of cutting tools, including router bits, milling cutters, drills, reamers, and taps. Tungsten carbide is often used for high-precision and high-speed operations, as it is extremely resistant to wear and tear. It is also very resistant to high temperatures and can withstand high cutting speeds. Additionally, tungsten carbide has excellent cutting properties, allowing for high accuracy and repeatability.



Specifiction



Product Name	Tungsten Carbide CNC Cutting Tools
Brand	Minjiang/HL
Model	APMT1604PDER-U2
Coating	PVD/CVD
Material	100% Virgin
Grade	MC115/MC118/MC118X/MC335/MC335X
Workpiece	Steel/Stainless steel/Alloy steel/Cast iron
HRA	HRA 89-93
MOQ	10 pcs



Related models&specification



Model	IC	Thickness	Nose radius
VCGW110301	6.35	3.18	0.1
VCGW110304	6.35	3.18	0.4
VCGW11T304	6.35	3.97	0.4
VCGW160401	9.525	4.76	.01
VCGW***	Customizable	Customizable	Customizable



Cutting speed reference



Workpiece material	Cutting speed(mmr)
Carbon Steel	1.17-3.0
Alloy structural steel	0.67-1.83
Copper Alloy	1.5-4.17
Aluminum Alloy	1.0-10



Manufacturing Process



• Raw material configuration:Select the configuration ratio according to the alloy grade, and add additives such as Ti, Ta, Ta, CrC, Ru, etc.
• ball milling:Ball milling of various raw materials to achieve the required particle size.
• spray drying:The raw materials after ball milling are dried to obtain pressed grades.
• Testing for fluidity and looseness:Detect the fluidity and looseness of the powder after drying.
• Pressing:Use a mold to press the raw material into shape.
• sintering:Sintering in a vacuum sintering furnace.
• Blank inspection:Test the physical properties of the sintered blank, such as density, magnetic saturation, coercive force, metallographic structure, hardness, etc.
• Grinding all over: The grinding machine grinds the tool thickness, front angle, back angle, R angle, etc. to the tolerance range.
• Passivation: In order to increase the cutting edge strength, the cutting edge of the insert is passivated using a drilling and milling machine.
• Finished product testing:Check whether the appearance, shape, dimensions, etc. of the finely ground blade meet the requirements.
• coating:PVD/CVD coating of tools upon request.







Chengdu Minjiang Precision Tool Corporation is a leading high-tech private enterprise that has been specializing in the production of precision cutting tools and carbide wear parts since 1999. Our team of 100 professionals operates from a 10,000-square-meter facility that is equipped with the latest and most advanced equipment, creating a fully integrated production and testing system. Our company has the ability to develop new products and provide customers with the highest quality products and services with maximum efficiency. We are certified to the ISO9001:2015 quality management system, ensuring that our products and services meet the highest standards of quality. Our product portfolio includes CNC carbide cutting tools, oil pipe thread cutters, and custom-made non-standard products, all of which are offered at competitive prices. We are dedicated to providing our customers with the best quality products and services.
