Product Details:
|
| Material: | 100% Virgin Tungsten Carbide | Type: | Machining Services |
|---|---|---|---|
| Size: | OEM Accepted | Application: | For Steel Surface Cuting |
| Precision: | High Precision | Grade: | According To Customer's Request |
| High Light: | OEM Tungsten Carbide Inserts,High Thermal Conductivity Tungsten Carbide Inserts,Cutting Tools Tungsten Carbide Inserts |
||

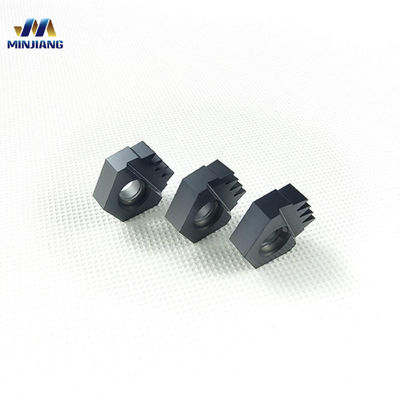

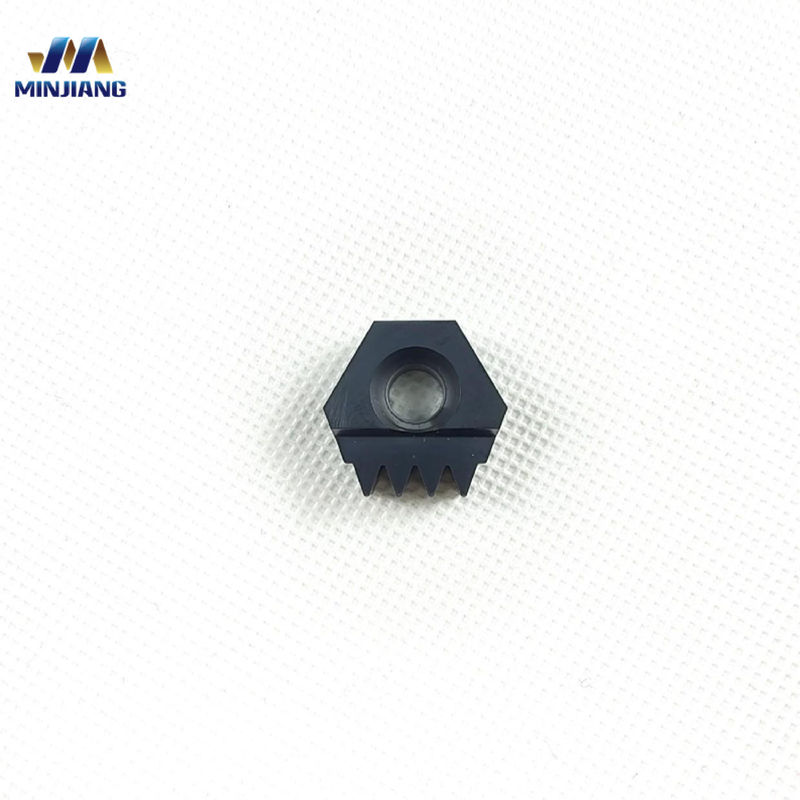

Tungsten-Tough Carbide CNC Cutting Tools - Precision-crafted For Maximum Durability And Strength
Tungsten Carbide CNC Cutting Tool is a type of cutting tool that is widely used in CNC machining. It is made from a combination of tungsten and carbon, making it highly durable and able to withstand high temperatures. This makes it the perfect choice for cutting through tough materials and in high-speed applications. It is also very resistant to wear and tear, allowing it to last longer than other cutting tools. It is also very precise, allowing it to produce parts with a high degree of accuracy. With its longer lifespan and superior cutting performance, Tungsten Carbide CNC Cutting Tool is a great choice for any machine shop looking to increase productivity and efficiency.
Specifiction
| Product Name | Tungsten Carbide CNC Cutting Tools |
| Brand | Minjiang/HL |
| Model | N220715-0802-JT |
| Coating | PVD/CVD |
| Material | 100% Virgin |
| Grade | MC115/MC118/MC118X/MC335/MC335X |
| Workpiece | Steel/Stainless steel/Alloy steel/Cast Iron |
| HRA | HRA 89-93 |
| MOQ | 10 pcs |
Material
According to the different binder contents, cemented carbide can be divided into different grades, such as YG, YT and YW . These grades have different performance characteristics and are suitable for different processing materials and processing conditions.
| Grade | WC(%) | TIC(%) | TaC/NbC(%) | Co(%) | Density(t/m³) | Thermal conductivity(W/m·K) | Hardness(HRA) | Flexural strength(/GPa) |
| YG3X | 97 | - | <0.5 | 3 | 14.9-15.3 | 87.92 | 91.5 | 1.08 |
| YG6X | 93.5 | - | 0.5 | 6 | 14.6-15.0 | 75.55 | 91 | 1.37 |
| YG6 | 94 | - | - | 6 | 14.6-15.0 | 75.55 | 89.75 | 1.42 |
| YG8 | 92 | - | - | 8 | 14.5-14.9 | 75.36 | 89 | 1.47 |
| YG10C | 90 | - | - | 10 | 14.3-14.9 | 75.36 | 88 | 1.72 |
| YT30 | 66 | 30 | - | 4 | 9.3-9.7 | 20.93 | 92.5 | 0.88 |
| YT15 | 79 | 15 | - | 6 |
11.0-11.7 |
33.49 | 91 | 1.13 |
| YT14 | 78 | 14 | - | 8 | 11.2-12.0 | 33.49 | 90.5 | 1.77 |
| YT5 | 85 | 5 | - | 10 | 12.5-13.2 | 62.80 | 89 | 1.37 |
| YG6A | 91 | - | 3 | 6 | 14.6-15.0 | - | 91.5 | 1.37 |
| YG8A | 91 | - | 1 | 8 | 14.5-14.9 | - | 98.5 | 1.47 |
| YW1 | 84 | - | 4 | 8 | 12.8-13.3 | - | 91.5 | 1.18 |
| YW2 | 82 | - | 4 | 8 | 12.6-13.0 | - | 90.5 | 1.32 |
Properties&Application
| Grade | Properties | Application |
| YG3X | Fine particle alloy with good wear resistance and poor impact toughness. | Finishing of cast iron, nonferrous metals, finishing of alloy steel, hardened steel, tungsten and molybdenum materials |
| YG6X | Fine-grained alloy with good wear resistance and impact toughness. | Semi-finishing and finishing of cast iron, chilled cast iron, alloy cast iron, heat-resistant steel and alloy steel. |
| YG6 | Good wear resistance and impact resistance. | Rough and semi-finishing of cast iron, non-ferrous metals and alloys, and non-metals. |
| YG8 | Higher strength, better impact resistance, poor wear resistance. | Rough machining of cast iron, non-ferrous metals and alloys, interrupted cutting is possible |
| YT30 | Good red hardness and wear resistance, but low strength, not impact resistant, prone to welding and grinding cracks. | Finishing of carbon steel and alloy steel during continuous cutting. |
| YT15 | Good wear resistance and red hardness, but poor impact resistance. | Semi-finishing and finishing of carbon steel and alloy steel during continuous cutting. |
| YT14 | Higher strength and impact toughness, but lower wear resistance and red hardness than YT15. | Roughing, semi-finishing and finishing of carbon steel and alloy steel during continuous cutting. |
| YT5 | Good strength and impact toughness, not easy to chip, but poor wear resistance. | Rough machining of carbon steel and alloy steel during continuous cutting, and can be used for continuous cutting. |
| YG6A | Fine-grained alloy with good wear resistance and strength. | Semi-finishing and finishing of hard cast iron, ductile iron, non-ferrous metals and alloys, high manganese steel, alloy steel, and hardened steel. |
| YG8A | Medium-grained alloy with good strength and poor red hardness. | Rough and semi-finishing of hard cast iron, ductile iron, white iron, non-ferrous metals, alloys and stainless steel. |
| YW1 | Good red hardness, wear resistance, impact resistance and versatility. | Semi-finishing and finishing of stainless steel, heat-resistant steel, high manganese steel and other difficult-to-process materials. |
| YW2 | Poor red hardness and wear resistance, but high strength and impact resistance. | Semi-finishing and finishing of stainless steel, heat-resistant steel, high manganese steel and other difficult-to-process materials. |
Application fields
Benefits Of Product
High Thermal Conductivity: Tungsten carbide has a high thermal conductivity, which means that it can dissipate heat generated during the cutting process effectively. This property reduces the risk of damage to the cutting edge and ensures longer tool life.
Precision Cutting: Tungsten carbide cutting tools can produce high-precision cuts due to their exceptional rigidity and resistance to bending. This precision cutting ability makes them ideal for use in high-precision applications such as aerospace and medical device manufacturing.
Versatility: Tungsten carbide cutting tools are versatile and can be used to cut a wide range of materials, including hardened steels, titanium alloys, and ceramics. This versatility makes them suitable for use in a wide range of industries and applications.
Reduced Downtime: Due to their longer lifespan, tungsten carbide cutting tools require less frequent replacements, resulting in reduced downtime for tool changes and increased production efficiency.
