High Wear-resistant CTTMA60FM Carbide Milling Inserts for CNC Machine

High Wear-resistant CTTMA60FM Carbide Milling Inserts for CNC Machine
High Wear-resistant CTTMA60FM Carbide Milling Inserts for CNC Machine High Wear-resistant CTTMA60FM Carbide Milling Inserts for CNC Machine High Wear-resistant CTTMA60FM Carbide Milling Inserts for CNC Machine

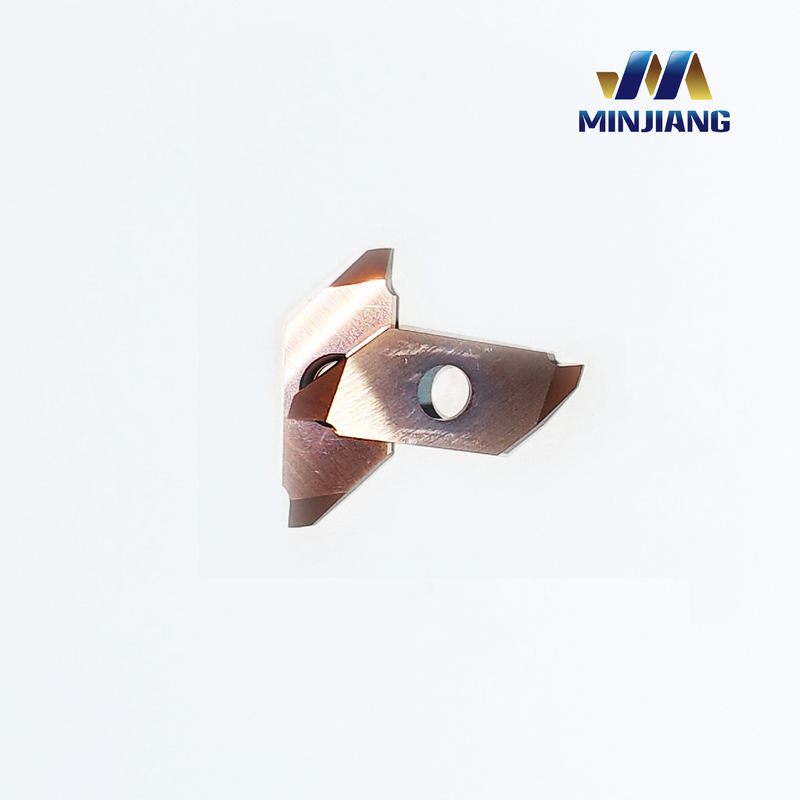

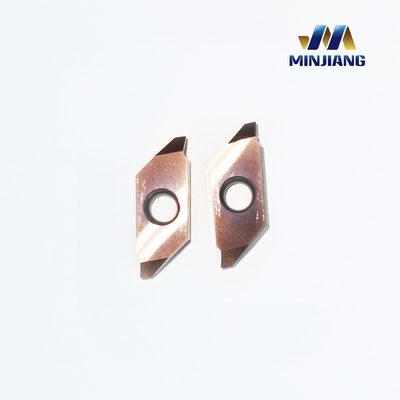

Large Image :  High Wear-resistant CTTMA60FM Carbide Milling Inserts for CNC Machine

Product Details:
Place of Origin: China
Brand Name: HL
Certification: ISO9001
Model Number: CTTMA60FM
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: 1-50USD
Packaging Details: Packed In Paper Box
Delivery Time: 35 Working Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10000 Pcs Per Month
Contact Now

High Wear-resistant CTTMA60FM Carbide Milling Inserts for CNC Machine

Description
Surface: Polished And Unground Types: Turning Tool, External Machining
Temperature: High Temperature Resistance Application: Metalworking
Stock: Available Durability: Long Service Life
Size Range: 1mm-20mm Feature: Wear Resistance, High Precision

High Wear-resistant CTTMA60FM Carbide Milling Inserts for CNC Machine



Tungsten carbide CNC cutting tools – engineered from ultra-hard tungsten-carbon composite – deliver unmatched durability and precision in metalworking applications, maintaining razor-sharp cutting edges through extended use while machining diverse materials from aluminum to titanium with exceptional accuracy, enabling complex geometric features like precision holes and slots; available in customizable configurations for versatile operations, these tools combine industrial-grade performance with cost-efficiency that redefines machining productivity standards.


Material


According to the different binder contents, cemented carbide can be divided into different grades, such as YG, YT and YW . These grades have different performance characteristics and are suitable for different processing materials and processing conditions.


Grade WC(%) TIC(%) TaC/NbC(%) Co(%) Density(t/m³) Thermal conductivity(W/m·K) Hardness(HRA) Flexural strength(/GPa)
YG3X 97 - <0.5 3 14.9-15.3 87.92 91.5 1.08
YG6X 93.5 - 0.5 6 14.6-15.0 75.55 91 1.37
YG6 94 - - 6 14.6-15.0 75.55 89.75 1.42
YG8 92 - - 8 14.5-14.9 75.36 89 1.47
YG10C 90 - - 10 14.3-14.9 75.36 88 1.72
YT30 66 30 - 4 9.3-9.7 20.93 92.5 0.88
YT15 79 15 - 6

11.0-11.7

 33.49 91 1.13
YT14 78 14 - 8 11.2-12.0 33.49 90.5 1.77
YT5 85 5 - 10 12.5-13.2 62.80 89 1.37
YG6A 91 - 3 6 14.6-15.0 - 91.5 1.37
YG8A 91 - 1 8 14.5-14.9 - 98.5 1.47
YW1 84 - 4 8 12.8-13.3 - 91.5 1.18
YW2 82 - 4 8 12.6-13.0 - 90.5 1.32


Properties&Application


Grade Properties Application
YG3X Fine particle alloy with good wear resistance and poor impact toughness. Finishing of cast iron, nonferrous metals, finishing of alloy steel, hardened steel, tungsten and molybdenum materials
YG6X Fine-grained alloy with good wear resistance and impact toughness. Semi-finishing and finishing of cast iron, chilled cast iron, alloy cast iron, heat-resistant steel and alloy steel.
YG6 Good wear resistance and impact resistance. Rough and semi-finishing of cast iron, non-ferrous metals and alloys, and non-metals.
YG8 Higher strength, better impact resistance, poor wear resistance. Rough machining of cast iron, non-ferrous metals and alloys, interrupted cutting is possible
YT30 Good red hardness and wear resistance, but low strength, not impact resistant, prone to welding and grinding cracks. Finishing of carbon steel and alloy steel during continuous cutting.
YT15 Good wear resistance and red hardness, but poor impact resistance. Semi-finishing and finishing of carbon steel and alloy steel during continuous cutting.
YT14 Higher strength and impact toughness, but lower wear resistance and red hardness than YT15. Roughing, semi-finishing and finishing of carbon steel and alloy steel during continuous cutting.
YT5 Good strength and impact toughness, not easy to chip, but poor wear resistance. Rough machining of carbon steel and alloy steel during continuous cutting, and can be used for continuous cutting.
YG6A Fine-grained alloy with good wear resistance and strength. Semi-finishing and finishing of hard cast iron, ductile iron, non-ferrous metals and alloys, high manganese steel, alloy steel, and hardened steel.
YG8A Medium-grained alloy with good strength and poor red hardness. Rough and semi-finishing of hard cast iron, ductile iron, white iron, non-ferrous metals, alloys and stainless steel.
YW1 Good red hardness, wear resistance, impact resistance and versatility. Semi-finishing and finishing of stainless steel, heat-resistant steel, high manganese steel and other difficult-to-process materials.
YW2 Poor red hardness and wear resistance, but high strength and impact resistance. Semi-finishing and finishing of stainless steel, heat-resistant steel, high manganese steel and other difficult-to-process materials.
