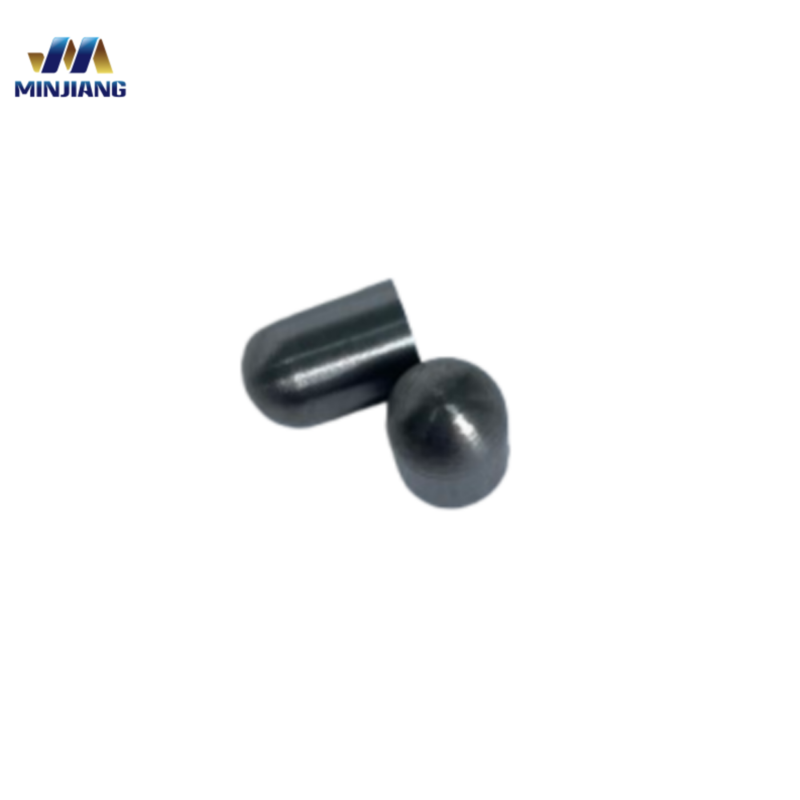

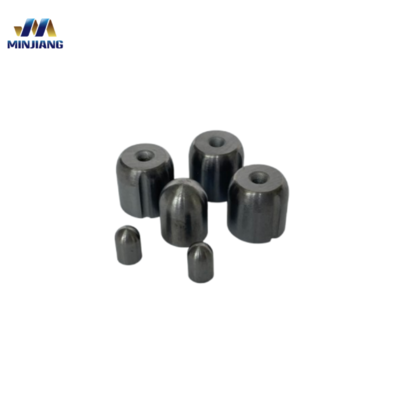

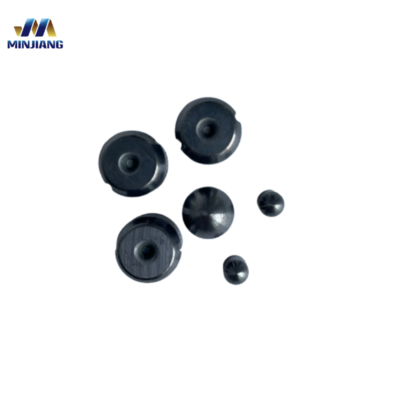

High-Strength Tungsten Carbide Buttons for Mining and Drilling Applications

High-Strength Tungsten Carbide Buttons for Mining and Drilling Applications
High-Strength Tungsten Carbide Buttons for Mining and Drilling Applications
High-Strength Tungsten Carbide Buttons for Mining and Drilling Applications High-Strength Tungsten Carbide Buttons for Mining and Drilling Applications High-Strength Tungsten Carbide Buttons for Mining and Drilling Applications High-Strength Tungsten Carbide Buttons for Mining and Drilling Applications

Large Image :  High-Strength Tungsten Carbide Buttons for Mining and Drilling Applications

Product Details:
Place of Origin: China
Brand Name: HL
Certification: ISO9001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: 10-200USD
Packaging Details: Packed In Paper Box
Delivery Time: 35 Working Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10000 Pcs Per Month
Contact Now

High-Strength Tungsten Carbide Buttons for Mining and Drilling Applications

Description
Name: High-Strength Tungsten Carbide Buttons Size: Customized Size
Application: Petroleum Machinery Sample: Available
Order: Accept Trial Order Properties: High Hardness

High-Strength Tungsten Carbide Buttons for Mining and Drilling Applications





Our Tungsten Carbide Buttons are engineered to deliver exceptional performance in the most demanding drilling and cutting operations. Manufactured from premium-grade micro-grain tungsten carbide, these buttons provide superior hardness, exceptional wear resistance, and outstanding structural durability. They are specifically designed to perform reliably under extreme conditions, including high-impact forces, heavy axial loads, abrasive formations, and corrosive environments. This makes them an ideal and critical component for a wide range of applications in mining, geological exploration, tunneling, trenching, and major construction projects. The buttons feature precise geometric dimensions and are processed to achieve excellent surface finish, which ensures superior bonding strength with the tool body. This robust integration significantly enhances the overall impact resistance of the drill bit, leading to a dramatically extended service life, consistent performance over time, and a substantial reduction in operational downtime and maintenance costs. Ultimately, our carbide buttons are a key investment for maximizing efficiency and productivity in heavy-duty industrial operations



Materials And Properties

Grade ISO Grade Chemical Composition Physical Properties Applications
WC% CO% Density g/cm3(±0.1) Hardness HRA(±0.5) TRS Mpa(min) Grain Size(μ m)
YG6 K20 94 6 14.85-15.00 90.5-92 1800 1.2-1.6 Carbide burr.
YG6X K15 94 6 14.80-15.00 91.7-93 1600 ＜1.0 High wear resistance and higher, strength. Machining of chilled alloy cast irons and refractory alloy steel or finishing of common cast irons.
YG8 K30 92 8 14.62-14.82 89.5-91 1900 1.2-1.6 Wire drawing dies and non-standard structure and mechanical component and valve ball.
YG9 K40 91 9 14.40-14.60 89-90 1850 1.2-1.6 Flow sleeves, bushings, rings.
YG9C K40 91 9 14.50-14.90 87.5-89 1815 1.2-1.6 Nozzles, for the petroleum.
YG11 K40 89 11 14.35 89 3200 1.6-2.0 Nozzle, buttons, hemisphere, drilling teeth for the petroleum industry.
YG11C - 89 11 14.20-14.40 87.5-89 2200 1.6-2.4 Inserts for mining and high-pressure nozzles in the petroleum, chemical, and mechanic industries.
YG13 - 87 13 14.10-14.30 87.5-89 2500 1.6-2.0 Sleeves and bushings.
YG13C - 87 13 14.05-14.25 85.8-87.3 2550 2.4-4.0 Alloy teeth and brazing bits.



Source Factory Advantages



  • Extensive Experience – Years of expertise in tungsten carbide production with proven quality assurance.

  • Advanced Manufacturing – Equipped with state-of-the-art sintering and precision grinding facilities.

  • Custom Solutions – Ability to design and produce carbide buttons to meet specific customer requirements.

  • Strict Quality Control – Each product undergoes rigorous inspection for hardness, toughness, and dimensional accuracy.

  • Competitive Pricing – Direct factory supply ensures cost-effectiveness without compromising quality.



Company Profile



Established in 1992, Chengdu Minjiang Precision Tool Co., Ltd. is a renowned high-tech enterprise specializing in CNC carbide cutting tools, oil pipe thread cutters, carbide wear-resistant parts, and customized non-standard carbide products. With a dedicated team of 100 employees, the company operates from a modern 10,000-square-meter facility housing four advanced manufacturing plants. These plants are equipped with high-precision machinery, a complete product portfolio, and a sophisticated quality inspection system, ensuring strict compliance with industry standards. The company is ISO9001:2008 certified, reflecting its commitment to quality management and continuous improvement. Chengdu Minjiang stands out for its ability to provide high-quality products with fast lead times, while also offering tailored design and manufacturing services to meet specific customer needs. Its extensive and innovative product line makes it a trusted partner for cutting tool solutions across various industries.



High-Strength Tungsten Carbide Buttons for Mining and Drilling Applications 0



FAQ



1. Q: What is the best way to contact you?

A: You can contact us by email, telephone, or online chat.



2. Q: What are their main advantages?
A: High hardness, strong wear and impact resistance, long service life, and customizable designs.



3. Q: Can you customize buttons?
A: Yes. We tailor size, shape, and material to match your specific working conditions and requirements.
