| Place of Origin: | China |
|---|---|
| Brand Name: | XYMJ |
| Certification: | ISO 9001 : 2018 |
| Model Number: | Customized |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Inner packing: wrapped by bubble bag,foam. Outer packing: standard export carton |
| Delivery Time: | 7-15 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 kilograms per month |
| Product: | Cemented Carbide Ball | Grade: | G1 G40 G25 G100 |
|---|---|---|---|
| Density: | 12.75-15.3 G/cm3 | HRA: | 82-92 |
| TRS: | 1180-2250 N/mm3 | Service: | One Stop Service |
| Surface: | Excellent Surface Mirror Polished | MOQ: | Sample Order Accept |
| High Light: | tungsten carbide tooling balls,tungsten carbide beads |
||

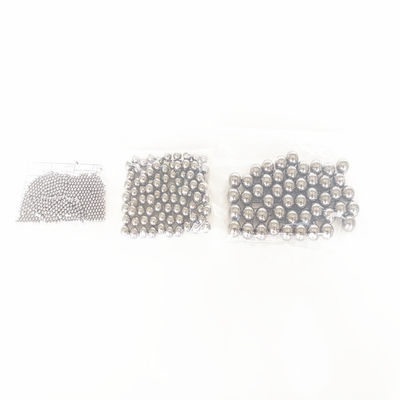

5mm 6mm 10mm Tungsten Carbide Ball For Of 40mm Bearing
Tungsten carbide balls
Tungsten carbide balls are used in applications requiring extreme hardness and resistance to wear and abrasion; and are able to withstand hard shocks and impacts. Tungsten carbide balls are made with 6% nickel binder or 9% nickel binder. Common applications include ball valves, flow meters, ball bearings, linear bearings, tungsten carbide grinding balls, and ball screws.
Description of tungsten ball
Tungsten carbide balls are used where extreme hardness and wear resistance is required; in such applications as bearings, ball screws, valves and flow meters.
Grade List
|
Cobalt Binder Grades |
||||
|
|
||||
|
Grade |
Binder(wt%) |
Density(g/cm3) |
Hardness(HRA) |
TRS(≥N/mm2) |
|
YG3 |
3 |
15.30 |
91.00 |
1180 |
|
YG6 |
6 |
15.10 |
92.00 |
1420 |
|
YG6X |
6 |
15.10 |
91.00 |
1600 |
|
YG8 |
8 |
14.90 |
90.00 |
1600 |
|
YG10 |
10 |
14.70 |
89.00 |
1900 |
|
YG10X |
10 |
14.70 |
89.50 |
2200 |
|
YG15 |
15 |
14.20 |
87.00 |
2100 |
|
YG20 |
20 |
13.70 |
85.50 |
2500 |
|
YG20C |
20 |
13.70 |
82.00 |
2200 |
|
YG30 |
30 |
12.80 |
82.00 |
|
| Ball dimension (mm) | ||
| D±1.27(mm) | ||
| 15.88 | ||
| 19.05 | ||
| 23.83 | ||
| 28.58 | ||
| 31.75 | ||
| 34.93 | ||
| 42.88 | ||
| 57.15 |
Model/Item |
V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
| Ball-D +0.020/-0.010 (+0.51/-0.25) |
15.88 (0.625in) |
19.05 (0.75in) |
23.83 (0.938in) |
28.58 (1.125in) |
31.75 (1.25in) |
34.93 (1.375in) |
42.88 (1.688in) |
57.15 (2.25in) |
| Seat-ID ± 0.050 (± 1.27) |
11.68 (0.46in) |
13.97 (0.55in) |
17.02 (0.67in) |
20.96 (0.825in) |
24.38 (0.96in) |
26.92 (1.06in) |
33.27 (1.31in) |
43.18 (1.7in) |
| Seat-OD +0.000/-0.005 (+0.00/-0.13) |
20.14 (0.793in) |
23.32 (0.918in) |
29.67 (1.168in) |
35.26 (1.388in) |
37.54 (1.478in) |
43.69 (1.72in) |
51.05 (2.01in) |
78.03 (3.072in) |
| Seat-H +0.020/-0.010 (+0.51/-0.25) |
12.70 (0.500in) |
12.70 (0.500in) |
12.70 (0.500in) |
12.70 (0.500in) |
12.70 (0.500in) |
12.70 (0.500in) |
12.70 (0.500in) |
19.05 (0.750in) |
| 10600 | 12500 | 15000 | 17500 | 20000 | 22500 | 25000 | 37500 | ||
| D (customized) |
Inch | 0.625 | 0.725 | 0.938 | 1.125 | 1.250 | 1.375 | 1.688 | 2.250 |
| mm | 15.88 | 19.05 | 23.83 | 28.58 | 31.75 | 34.93 | 42.88 | 57.15 | |
| H -0.020/-0.010 (+0.51/0.25) |
Inch | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.750 |
| mm | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 19.05 | |
| FZ +0.000/-0.031 (+0.00/-0.78) |
Inch | 0.767 | 0.892 | 1.11 | 1.331 | 1.421 | 1.631 | 1.921 | 2.950 |
| mm | 19.48 | 22.66 | 28.22 | 33.81 | 36.09 | 41.43 | 48.79 | 74.93 | |
| OD +0.000/-0.005 (-0.00/-0.13) |
Inch | 0.793 | 0.918 | 1.168 | 1.388 | 1.478 | 1.720 | 2.010 | 3.072 |
| mm | 20.14 | 23.32 | 29.67 | 35.26 | 37.54 | 43.69 | 51.05 | 78.03 | |
| ID +/-0.050 (+/-1.27) |
Inch | 0.460 | 0.550 | 0.670 | 0.825 | 0.960 | 1.060 | 1.310 | 1.700/1.800 |
| mm | 11.68 | 13.97 | 17.02 | 20.96 | 24.38 | 26.92 | 33.27 | 43.18/47.75 | |
Dimensional Symbol |
V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
Ball-D +0.020/-0.010 (+0.51/-0.25) |
15.88 (0.625in) |
19.05 (0.75in) |
23.83 (0.938in) |
28.58 (1.125in) |
31.75 (1.25in) |
34.93 (1.375in) |
42.88 (1.688in) |
57.15 (2.25in) |
Seat-ID ± 0.050 ( ± 1.27) |
11.68 (0.46in) |
13.97 (0.55in) |
17.02 (0.67in) |
20.96 (0.825in) |
24.38 (0.96in) |
26.92 (1.06in) |
33.27 (1.31in) |
43.18 (1.7in) |
Seat-OD +0.000/-0.005 +0.00/-0.13 |
20.14 (0.793in) |
23.32 (0.918in) |
29.67 (1.168in) |
35.26 (1.388in) |
37.54 (1.478in) |
43.69 (1.72in) |
51.05 (2.01in) |
78.03 (3.072in) |
Seat-H +0.020/-0.010 (+0.51/-0.25) |
0.500 (12.70in) |
0.500 (12.70in) |
0.500 (12.70in) |
0.500 (12.70in) |
0.500 (12.70in) |
0.500 (12.70in) |
0.500 (12.70in) |
0.750 (19.05in) |
Production Process
FAQ
Q1: How can I place order?
A1: You can contact us by email about your order details, or place order on line.
Q2: How can I pay you?
A2: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.
Q3: What’s the order procedure?
A3: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15 days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
Q4: How do you take care when your clients received defective products?
A4: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
Q5: How do you check all the goods in the production line?
A5: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
