Product Details:
|

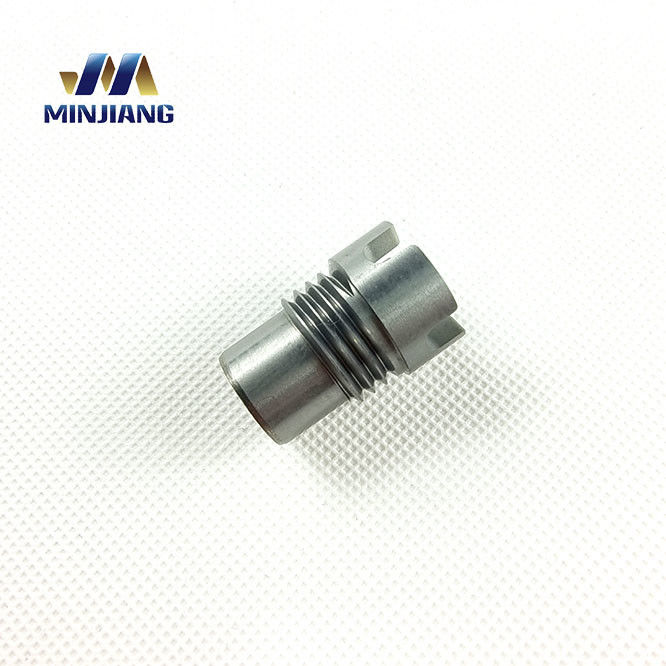

Product Name: | OEM Tungsten Carbide Threaded Nozzle | Type: | Machining Services |
---|---|---|---|
Size: | OEM Accepted | Application: | Oil Drilling |
Certified: | ISO9001 | MOQ: | 10 Pcs |
Material: | 100% Virgin Tungsten Carbide | Dimenstion: | Customized |
Highlight: | heat resistance Tungsten Carbide Nozzles,Oil Drilling carbide spray nozzle,heat resistance carbide spray nozzle |
Product Features
Versatility: Our carbide nozzles are designed to be used in a variety of applications, owing to their superior performance and durability.
Corrosion Resistance: Our carbide nozzles are resistant to corrosion and can withstand harsh environmental conditions.
Low Maintenance: Our carbide nozzles require minimal maintenance, allowing for improved operational efficiency.
Reliability: Our carbide nozzles are highly reliable and produce consistent results, promoting customer satisfaction.
Recommended Material
Grade | ISO Grade | Chemical Composition | Physical Properties | Applications | |||||||
WC% | CO% | Density g/cm3(±0.1) | Hardness HRA(±0.5) | TRS Mpa(min) | Grain Size(μ m) | ||||||
YG6 | K20 | 94 | 6 | 14.85-15.00 | 90.5-92 | 1800 | 1.2-1.6 | Carbide burr. | |||
YG6X | K15 | 94 | 6 | 14.80-15.00 | 91.7-93 | 1600 | <1.0 | High wear resistance and higher, strength. Machining of chilled alloy cast irons and refractory alloy steel or finishing of common cast irons. | |||
YG8 | K30 | 92 | 8 | 14.62-14.82 | 89.5-91 | 1900 | 1.2-1.6 | Wire drawing die and non-standard structure and mechanical component and valve ball. | |||
YG9 | K40 | 91 | 9 | 14.40-14.60 | 89-90 | 1850 | 1.2-1.6 | Flow sleeves, bushings, rings. | |||
YG9C | K40 | 91 | 9 | 14.50-14.90 | 87.5-89 | 1815 | 1.2-1.6 | Nozzles, for the petroleum. | |||
YG11 | K40 | 89 | 11 | 14.35 | 89 | 3200 | 1.6-2.0 | Nozzle, buttons, hemisphere, drilling teeth for the petroleum industry. | |||
YG11C | - | 89 | 11 | 14.20-14.40 | 87.5-89 | 2200 | 1.6-2.4 | Inserts for mining and high-pressure nozzles in the petroleum, chemical, and mechanic industries. | |||
YG13 | - | 87 | 13 | 14.10-14.30 | 87.5-89 | 2500 | 1.6-2.0 | Sleeves and bushings. | |||
YG13C | - | 87 | 13 | 14.05-14.25 | 85.8-87.3 | 2550 | 2.4-4.0 | Alloy teeth and brazing bits. |
FAQ
1. Q: Do you provide free samples?
A: We can provide free samples, but do not undertake the freight cost.
2. Q: Do you provide samples? Is it a free or extra charge?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
3. Q: What is your minimum order quantity?
A: Our minimum order quantity will vary depending on the product.
4. Q: What payment methods do you accept?
A: We accept payment by bank transfer and Western Union.
