Product Details:
|
| Features: | Wear-resisting | Type: | Sleeve |
|---|---|---|---|
| Material: | 100% Virgin Tungsten Carbide | Application: | Oil Field |
| Product Name: | Tungsten Carbide Sleeve Bushing | Size: | OEM Accepted |
| High Light: | High Strength tungsten carbide bushing,ISO9001 tungsten carbide bushing,Oil And Gas Field tungsten carbide bushing |
||

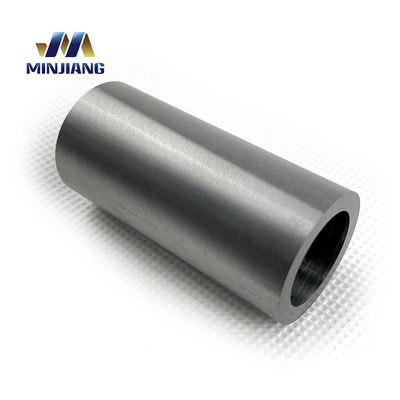

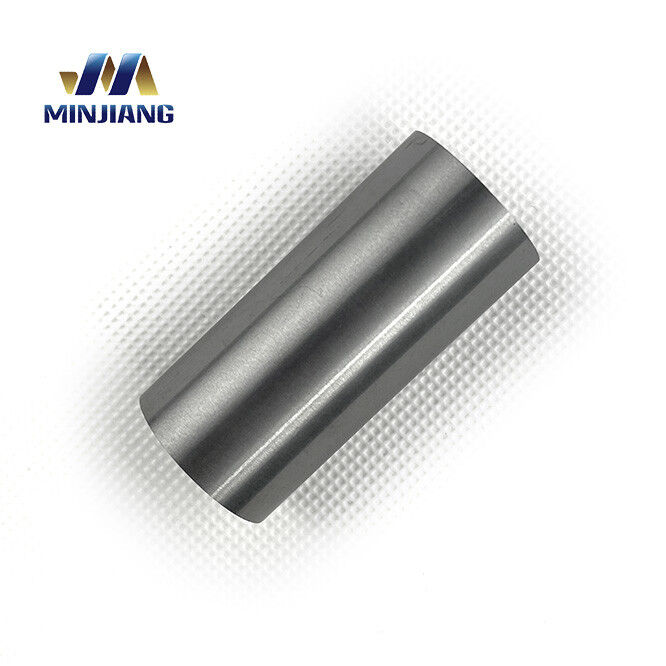

High Strength Carbide Bushing Sleeve Bearing ISO9001 For Oil And Gas Field
Description
Tungsten Carbide Sleeves is an extremely durable and wear-resistant material used for a variety of applications. It is made of a combination of tungsten, carbon, and other metals and is extremely strong and resistant to corrosion and wear. It is often used in industrial settings such as machining, engineering, and automotive applications, as well as for medical implants, jewelry, and other decorative items. Tungsten Carbide Sleeves are capable of withstanding extremely high temperatures and pressures, and can also be used in high-precision applications where accuracy and precision are essential. They are also highly resistant to chemicals, abrasion, and shock, making them an ideal choice for a wide range of applications. Tungsten Carbide Sleeves are available in a variety of sizes and shapes and can be custom-made to meet any need.
| Grade | ISO Grade | Chemical Composition | Physical Properties | Applications | |||||||
| WC% | CO% | Density g/cm3(±0.1) | Hardness HRA(±0.5) | TRS Mpa(min) | Grain Size(μ m) | ||||||
| YG6 | K20 | 94 | 6 | 14.85-15.00 | 90.5-92 | 1800 | 1.2-1.6 | Carbide burr. | |||
| YG6X | K15 | 94 | 6 | 14.80-15.00 | 91.7-93 | 1600 | ＜1.0 | High wear resistance and higher, strength. Machining of chilled alloy cast irons and refractory alloy steel or finishing of common cast irons. | |||
| YG8 | K30 | 92 | 8 | 14.62-14.82 | 89.5-91 | 1900 | 1.2-1.6 | Wire drawing die and non-standard structure and mechanical component and valve ball. | |||
| YG9 | K40 | 91 | 9 | 14.40-14.60 | 89-90 | 1850 | 1.2-1.6 | Flow sleeves, bushings, rings. | |||
| YG9C | K40 | 91 | 9 | 14.50-14.90 | 87.5-89 | 1815 | 1.2-1.6 | Nozzles, for the petroleum. | |||
| YG11 | K40 | 89 | 11 | 14.35 | 89 | 3200 | 1.6-2.0 | Nozzle, buttons, hemisphere, drilling teeth for the petroleum industry. | |||
| YG11C | - | 89 | 11 | 14.20-14.40 | 87.5-89 | 2200 | 1.6-2.4 | Inserts for mining and high-pressure nozzles in the petroleum, chemical, and mechanic industries. | |||
| YG13 | - | 87 | 13 | 14.10-14.30 | 87.5-89 | 2500 | 1.6-2.0 | Sleeves and bushings. | |||
| YG13C | - | 87 | 13 | 14.05-14.25 | 85.8-87.3 | 2550 | 2.4-4.0 | Alloy teeth and brazing bits. | |||
Competitive Pros
Quality Guarantee
At Tungsten Carbide Sleeve, we are dedicated to delivering top-notch tungsten carbide sleeves on the market. Our staff of proficient engineers and technicians guarantees that our products achieve the utmost quality and dependability. Utilizing the latest technology and materials, our products are crafted to provide an enduring, solid, and dependable solution. We are proud of our products and guarantee that they will function as promised and provide the desired results. If you are unhappy with the performance of the product, we will gladly substitute it or reimburse you.
FAQ
1. Q: What payment methods do you accept?
A: We accept payment by bank transfer and Western Union.
2. Q: What is the benefit of using Tungsten Carbide Sleeves?
A: Tungsten carbide sleeves improved wear resistance, increased strength and durability, and improved corrosion resistance. They are also more dimensionally stable than other materials and can withstand higher temperatures, making them suitable for use in a wide range of applications.
3. Q: What is the best way to contact you?
A: You can contact us by email, telephone, or online chat.
