Product Details:
|
| Name: | Tungsten Carbide Button | Type: | Machining Services |
|---|---|---|---|
| Size: | OEM Accepted | Application: | For Oil Drilling Bits |
| Material: | 100% Virgin Tungsten Carbide | Feedback: | Within 48 Hours |
| High Light: | YG13 Button Drill Bit,Tungsten Carbide Oil Drilling Bits,Virgin Tungsten Carbide Button |
||

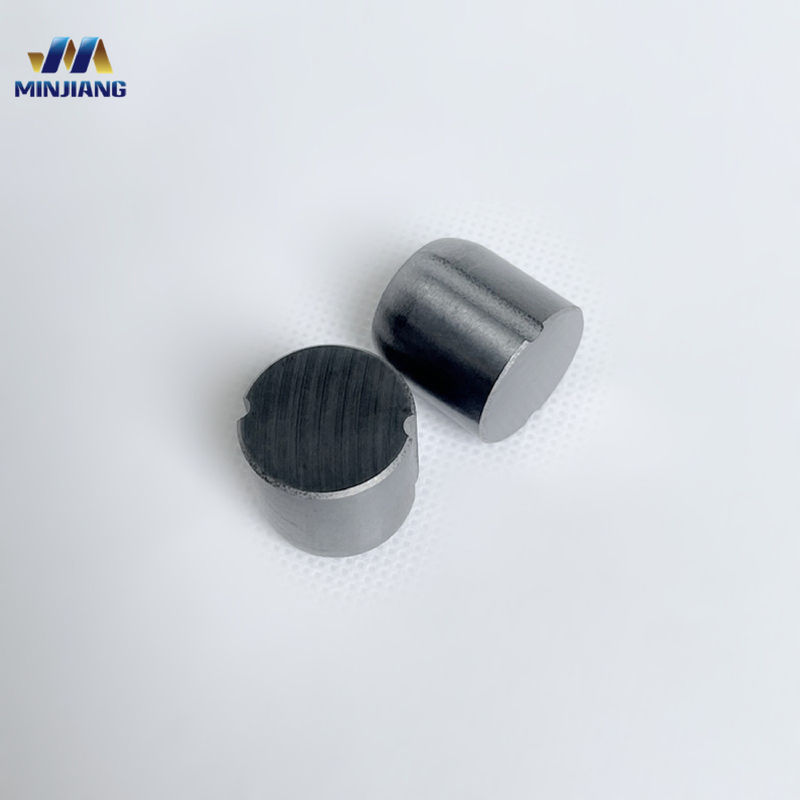

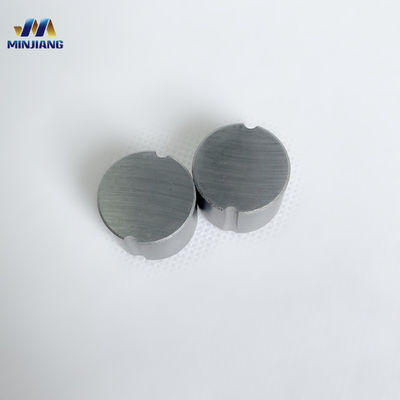

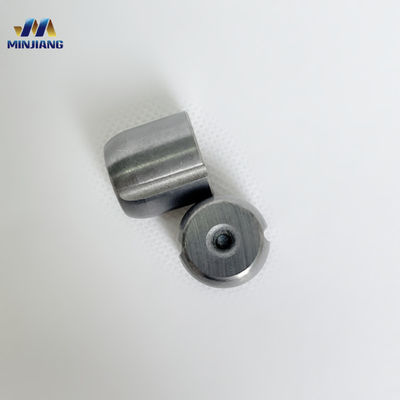

High-Performance YG13 Tungsten Carbide Button for Oil Drilling Bits
Tungsten carbide buttons represent an exceptionally robust and durable material with a multitude of applications across various industrial and tooling sectors. As an alloy composed of tungsten and carbon, it gives rise to a material characterized by remarkable strength and an extraordinary capacity to withstand the test of time. Consequently, it has emerged as the material of choice for a plethora of tools, including drill bits, routers, and end mills. Furthermore, tungsten carbide buttons are a prevalent choice for crafting wear-resistant components for mining and drilling equipment. Their innate properties, encompassing superior wear resistance, unparalleled strength, and a low coefficient of friction, make them the preferred option in numerous industrial applications, where reliability and longevity are paramount.
Specification
|
Product Name |
Cemented Tungsten Carbide Button |
|
Brand |
Minjiang/HL |
|
Model |
MJP-BQA-401-04 |
|
Material |
100% Virgin Tungsten Carbide |
|
Grade |
YG6/YG8/YG11/YG13 |
|
Usage |
Drill Bit |
|
MOQ |
10 Pieces |
Product Features
Exceptional Hardness: Tungsten Carbide Buttons are celebrated for their extraordinary hardness, ensuring long-lasting durability.
Superior Wear Resistance: They exhibit outstanding resistance to wear and abrasion, making them ideal for high-impact applications.
High Heat Tolerance: Tungsten Carbide Buttons can endure extreme temperatures without degradation, ensuring consistent performance.
Corrosion Resistance: These buttons are highly resistant to corrosion, making them suitable for chemically challenging environments.
Optional Grades
| Grade | ISO Grade | Chemical Composition | Physical Properties | ||||
| WC% | CO% | Density g/cm3(±0.1) | Hardness HRA(±0.5) | TRS Mpa(min) | Grain Size(μ m) | ||
| YG6 | K20 | 94 | 6 | 14.85-15.00 | 90.5-92 | 1800 | 1.2-1.6 |
| YG6X | K15 | 94 | 6 | 14.80-15.00 | 91.7-93 | 1600 | ＜1.0 |
| YG8 | K30 | 92 | 8 | 14.62-14.82 | 89.5-91 | 1900 | 1.2-1.6 |
| YG9 | K40 | 91 | 9 | 14.40-14.60 | 89-90 | 1850 | 1.2-1.6 |
| YG9C | K40 | 91 | 9 | 14.50-14.90 | 87.5-89 | 1815 | 1.2-1.6 |
| YG11 | K40 | 89 | 11 | 14.35 | 89 | 3200 | 1.6-2.0 |
| YG11C | - | 89 | 11 | 14.20-14.40 | 87.5-89 | 2200 | 1.6-2.4 |
| YG13 | - | 87 | 13 | 14.10-14.30 | 87.5-89 | 2500 | 1.6-2.0 |
| YG13C | - | 87 | 13 | 14.05-14.25 | 85.8-87.3 | 2550 | 2.4-4.0 |
Company Concept
Innovation stands as the catalyst for introducing fresh and inventive elements into a system. It hinges on the virtues of creativity, experimentation, and the courage to venture into uncharted territories, all in pursuit of generating original concepts, products, services, or processes that hold the potential to profoundly benefit the organization. Innovation is a multifaceted concept, manifesting in various forms, from the integration of cutting-edge technologies to the comprehensive transformation of existing products and services. This dynamic process of innovation is continually evolving, underlining its importance as a driving force for businesses. It equips organizations with a competitive edge and plays a pivotal role in fostering economic growth. By challenging the conventions of traditional thinking and reimagining established systems, innovation emerges as the key that unlocks doors to uncharted opportunities, ultimately leading the way to greater success.
Major Product Lines
FAQ
1. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
2. Q: Are the products high quality?
A: Yes. The raw material will be tested before bulk production, and we will check the physical properties, shape, and tolerance for ensuring qualified products before shipping.
3. Q: How do you guarantee your quality?
A: Material selection and hardness survey are critical for product quality. We were formally engaged in forging and had a good command of the mechanics and property of different tool steels. Inspection of incoming materials is furthermore well taken care of. Long-term raw providers physically near to us, help make us more competitive, ensuring quality.
